Product Information
TOYOPUC-Nano 10GX

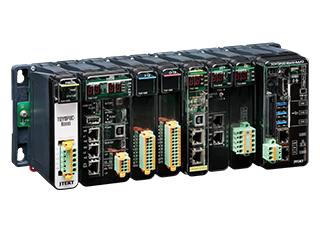

1. Supports numerous industrial networks
■ Supported Networks:
・EtherCAT
・EtherNet/IP
・CIP Safety(EtherNet/IP)
・IO-Link
■ Enhancing integration with other manufacturers' products
2. New high-speed platform and three functions
■ Speed comparison with PC10G: 6x faster(Comparison based on basic instruction processing speed)
■ The common platform seamlessly connects general data, safety data, and big data.

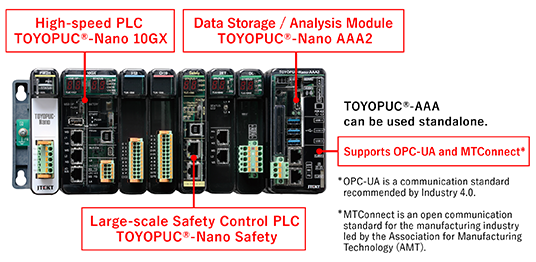

3. Realizes large capacity memory and advanced data processing
■ Achieves more advanced analysis when used in conjunction with data accumulation and analysis modules.
■ Newly supports OPC-UA and MTConnect, providing strong support for IoE.

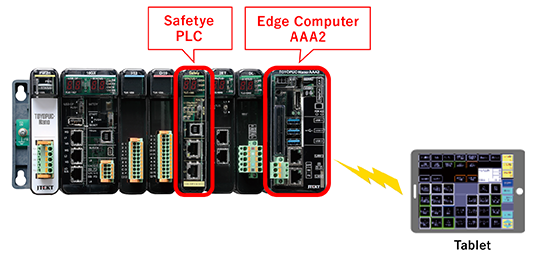

4. Evolved smartization
■ Panel-less operation: Operation screens can be transferred to tablets and other devices, enabling remote control support.
■ Single-PLC handling enabled by large capacity and high-speed processing.→ Process consolidation and decentralized control.

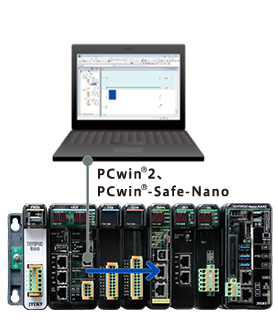

Peripheral software
1. Smartization of peripheral software
■ Tool compatibility
Operability and data are backward compatible.
■ Programming tools
| Item | Model | Version | Function |
|---|---|---|---|
| PCwin®2 | TJA-1137 | Japanese CD-less |
PCwin®: For TOYOPUC-PC10G series PCwin®2: For TOYOPUC-Nano 10GX |
| TJA-1138 | English CD-less |
||
| PCwin®-Safe2 | TJA-1139 | Japanese CD-less |
PCwin®-Safe: For TOYOPUC-PCS PCwin®-Safe-J: For TOYOPUC-PCS-J PCwin®-Safe-Plus: For TOYOPUC-Plus Safety PCwin®-Safe-Nano: For TOYOPUC-Nano Safety |
| TJA-1140 | English CD-less |

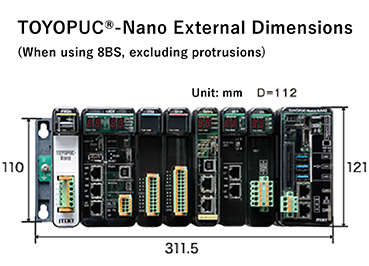

Specifications
■ TOYOPUC®-Nano 10GX Performance Specifications
| Item | Specifications |
|---|---|
| Programming Language | Ladder (LD), SFC, FBD |
| Basic Instruction Processing Speed | 2.6 ns ~ / instruction |
| Instructions | 20 basic, 23 timer/counter, over 700 application instructions |
| External I/O Points | 4,096 points |
| Internal Output Points | 86,016 points (4,096 pts × 3 + 8,192 pts + 65,536 pts) |
| Keep Relay Points | 6,400 points (768 pts × 3 + 4,096 pts) |
| Timer Functions | Total 9,728 points |
| Counter Functions | 1 ~ 65,535 (2,560 pts × 3 + 2,048 pts) |
| Link Relay Points | 38,912 points (10,240 pts × 3 + 8,192 pts) |
| Rising / Falling Detection | 11,776 points (2,560 pts × 3 + 4,096 pts) |
| Data Registers | 164KW (12KW × 3 + 128KW), Flash register: 4Mbyte, Expansion buffer register: 256KW Direct designation possible |
| Link Registers | 6KW / 16 bit (2KW × 3) |
| Number of Link Modules | Max 24 links |
■ TOYOPUC®-Nano 10GX Product Lineup
| Device | Item ｜ Name | Model | Specifications | |
|---|---|---|---|---|
| CPU | Nano 10GX | TUC-1157 | Program capacity: 240k steps L1: FL-net / Ethernet / FL-remote M / EtherCAT Master / EtherNet/IP L2: FL-net / Ethernet / FL-remote M / EtherNet/IP L3: PC-LINK / CMP-LINK / MODBUS / SIO / SN-I/F L4: PC-LINK / CMP-LINK / MODBUS / SIO Expansion bus (I/O BUS): 1 port, Expansion bus (BUS-EX): 1 port |
|
| DC24V Power Module | Nano PW2 | TUV-6942 | Rated input DC24V, rated output DC3.3V Max 7.5A (Self-diagnostic function) | |
| Nano PW2H | TUV-1225 | Rated input DC24V, rated output DC3.3V Max 9.0A (Self-diagnostic function) | ||
| Input/Output Module | Input | Nano I-22 | TUK-6948 | 32pt DC24V input |
| Nano I-12 | TUK-1006 | 16pt DC24V input | ||
| Nano SW | TUK-6965 | 16pt switch input module | ||
| Output | Nano O-29 | TUK-6947 | 32pt transistor output, plus common, 0.5A/pt, 2A/8pt | |
| Nano O-2B | TUK-1042 | 32pt transistor output, plus common, 0.5A/pt, 2A/16pt | ||
| Nano O-2A | TUK-1041 | 32pt transistor output, minus common, 0.5A/pt, 2A/16pt | ||
| Nano O-19 | TUK-1009 | 16pt transistor output, plus common, 1.0A/pt, 4.0A/8pt | ||
| Nano O-18 | TUK-1008 | 16pt transistor output, minus common, 1.0A/pt, 4.0A/8pt | ||
| Nano O-12 | TUK-1007 | 16pt relay output, DC24V 2A/pt, 5A/8pt | ||
| Input/Output | Nano IO-329 | TUK-6952 | 64pt mixed: In: 32pt (minus common) / Out: 32pt transistor (plus common) | |
| Nano IO-328 | TUK-1005 | 64pt mixed: In: 32pt (plus common) / Out: 32pt transistor (minus common) | ||
| Selector | Nano SL | TUU-6955 | Base expansion module | |
| Base Unit | Nano 10BS | TUR-1043 | 10-slot base unit | |
| Nano 8BS | TUR-6943 | 8-slot base unit | ||
| Nano 6BS | TUR-6966 | 6-slot base unit | ||
| Nano 4BS | TUR-6967 | 4-slot base unit | ||
| Comm. Module | 2-port Comm. | Nano 2ET | TUU-6949 | FL-net / Ethernet / FL-remote M / EtherNet/IP / EtherCAT Master (2 ports) |
| 2-port Serial | Nano 2ML | TUU-6954 | PC-LINK / CMP-LINK / MODBUS-RTU / SIO (2 ports). (RS-422 4-wire: 1 port max) | |
| DeviceNet | Nano DL | TUU-6956 | DeviceNet Master/Slave combined module | |
| Special Module | High-speed counter | Nano CT | TUK-6974 | 2ch counter. In: DC 5/12/24V / Diff. RS-422. Max 8Mbps (Diff.). |
| Analog Input | Nano AD | TUK-6975 | 8ch analog in (Voltage/Current). -10 to +10V, 4-20mA, etc. | |
| Analog Output | Nano DA | TUK-6976 | 8ch analog out (Voltage/Current). -10 to +10V, 4-20mA, etc. | |
| Motion Controller | Nano MM3 | TCI-1076 | Max 8 axes. MECHATROLINK-III | |
| Motion Controller | Nano MS3 | TUI-1317 | Max 8 axes. SSCNET III, III/H | |
| Edge Computer *1 | Nano AAA2 | TUK-1321 | Windows 10 IoT Enterprise 2021 LTSC, Storage 64GB. | |
| Safety Master | Nano Safety | TUC-1085 | Safety master. Ladder: 32k steps. EtherNet/IP + CIP Safety (2 ports) | |
*1 For details on adding OPC-UA/MTConnect, please contact us.
