CNC cylindrical grinders

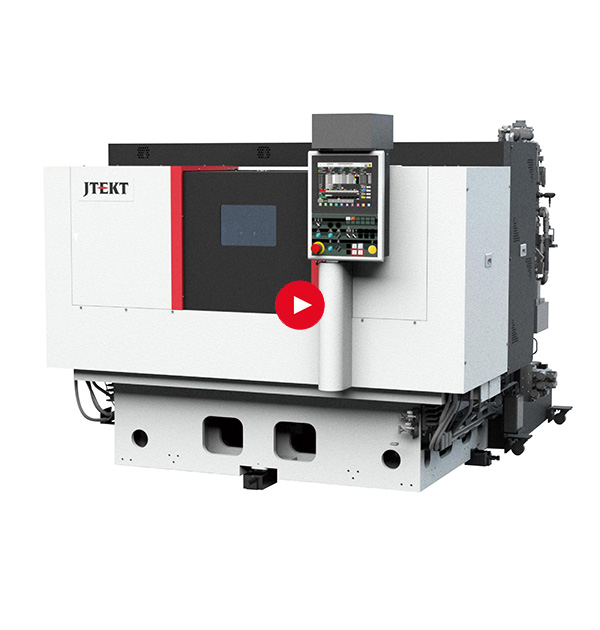

G1 Series (Type Basic wheel traverse,Sports,Racing)
Grinding diameter (mm) φ0～φ150 Distance between centers (mm) 200/350/500 Wheel diameter (mm) Normal wheel φ510
CBN wheel φ350/φ370 -
CNC cylindrical grinders

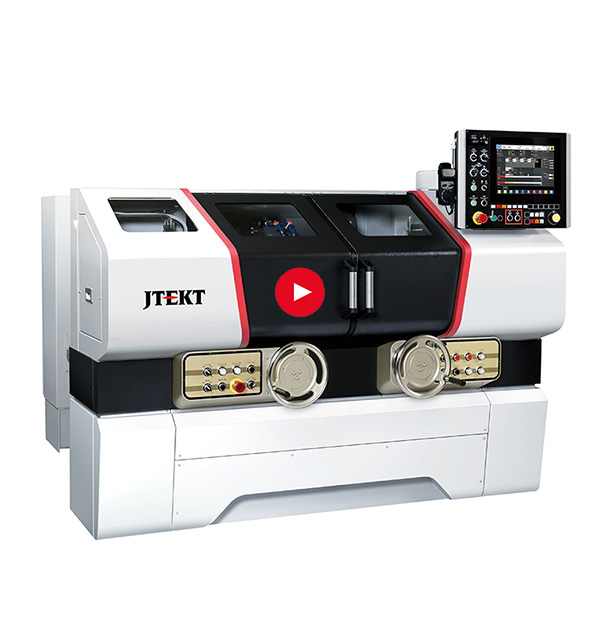

G1 Series (Type General,Luxury)
Grinding diameter (mm) φ0～φ60 Distance between centers (mm) 250 Wheel diameter (mm) φ355 -
CNC cylindrical grinders

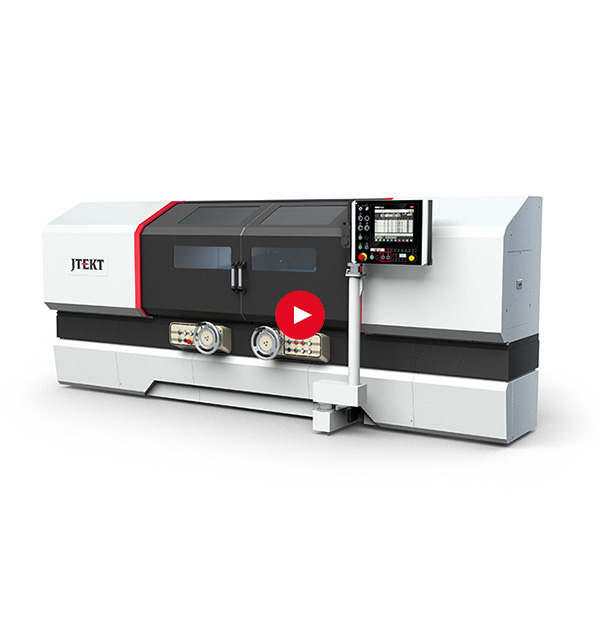

G3 Series (Type General,Luxury)
Grinding diameter (mm) φ0～φ300 Distance between centers (mm) 500/1,000/
1,500/2,000Wheel diameter (mm) P type：φ405/φ510
A type：φ455 -
CNC cylindrical grinders

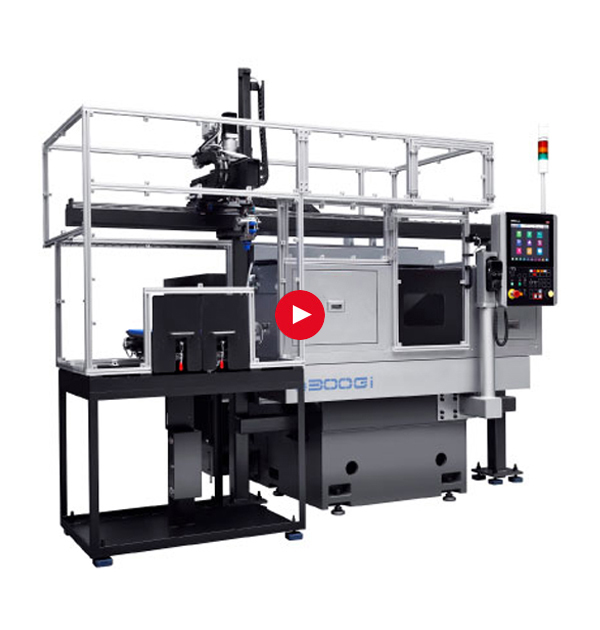

e300Gi
Grinding diameter (mm) φ60/φ80 Distance between centers (mm) 280/320 Wheel diameter (mm) Normal wheel φ355
CBN wheel φ300/φ350 -
CNC cylindrical grinders

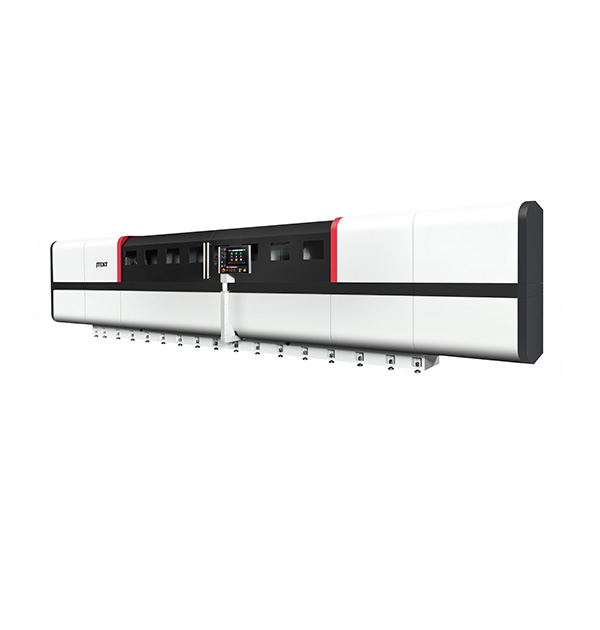

SelectG7
Grinding diameter (mm) φ0～φ650 Distance between centers (mm) 1,000/2,500/
3,200/4,000Wheel diameter (mm) φ760
[φ915/φ1,065] -
CNC cylindrical grinders

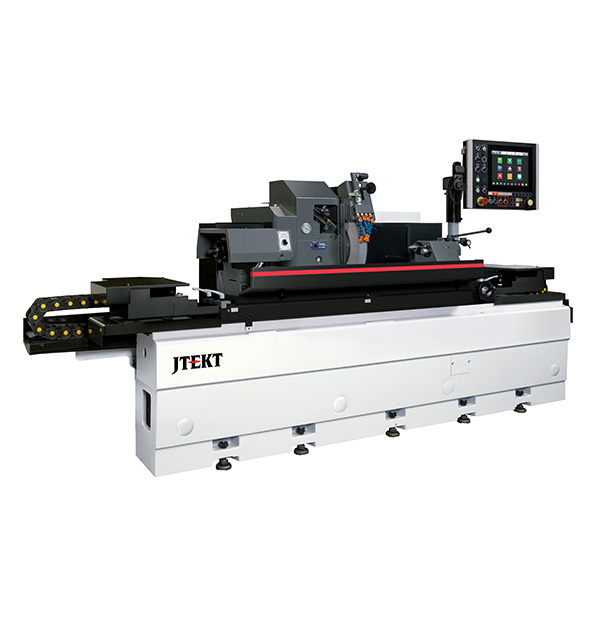

GL4i-SWITCH
Grinding diameter (mm) φ0～φ300 Distance between centers (mm) 500/1,000/
1,500/2,000Wheel diameter (mm) φ510 - By industry： Industrial Machinery Precision Mechanical Equipment Tools
-
CNC cylindrical grinders

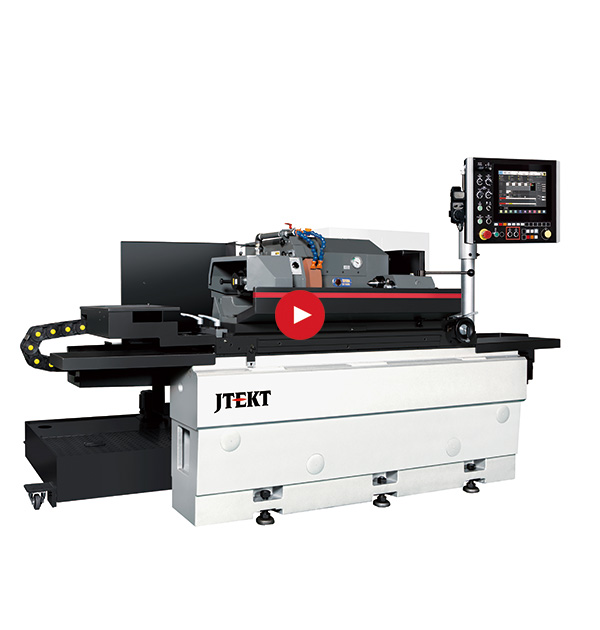

GL4Pi Polygon Grinding Package
Grinding diameter (mm) φ0～φ300 Distance between centers (mm) 500/1,000/1,500/2,000 Wheel diameter (mm) φ510 -
CNC cylindrical grinders

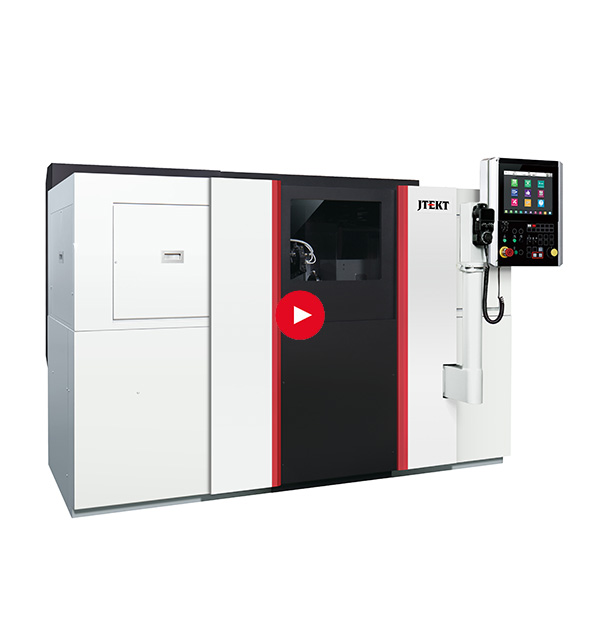

GL5i
Grinding diameter (mm) φ0～φ220 Distance between centers (mm) 320/630/
1,000/1,500Wheel diameter (mm) φ510[φ610/φ350]
*Angular:
φ510 [φ610/φ370] -
CNC internal grinders

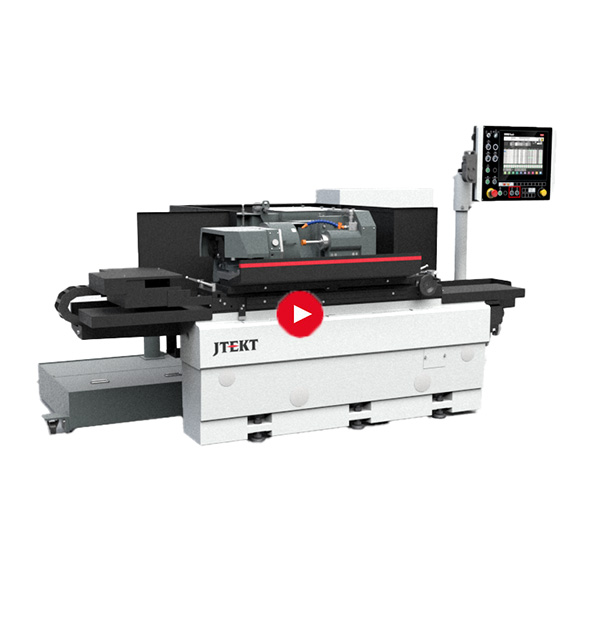

GE4i-INTER
Swing over table (mm) φ320 [φ400] Distance between centers (mm) 500/1,000/
1,500/2,000Grinding internal diameter (mm) φ150 -
Large CNC general purpose cylindrical grinders

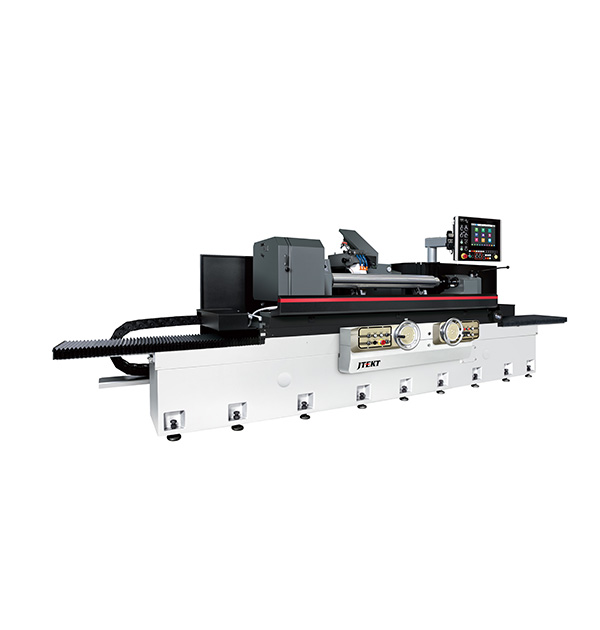

GE6i
Grinding diameter (mm) φ0～φ550 Distance between centers (mm) 1,000/1,600/2,500/
3,200/4,000Wheel diameter (mm) φ610[φ760] - By industry： Energy Industrial Machinery Mold Agricultural Machinery/Construction Equipment
- By subject： High Precision Easy of Use
-
Hydraulic cylindrical grinders & Hydraulic universal grinders

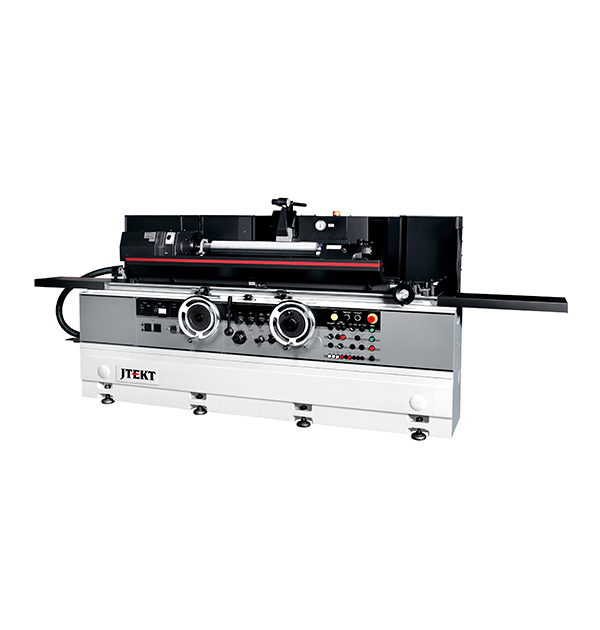

G32 Series
Grinding diameter (mm) φ0～φ220 Distance between centers (mm) 500/1,000/1,500 Wheel diameter (mm) φ405 - By industry： Industrial Machinery
- By subject： High Precision Easy of Use
-
CBN cylindrical grinders

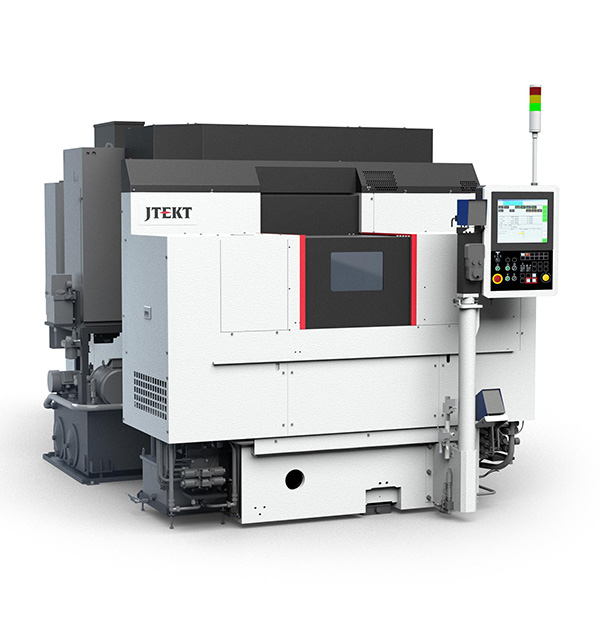

GL32S
Grinding diameter (mm) φ0～φ150 Distance between centers (mm) 500 Wheel diameter (mm) φ350 - By industry： Automobile Agricultural Machinery/Construction Equipment
- By subject： High Efficiency Automation Productivity Improvement
-
CBN cylindrical grinders

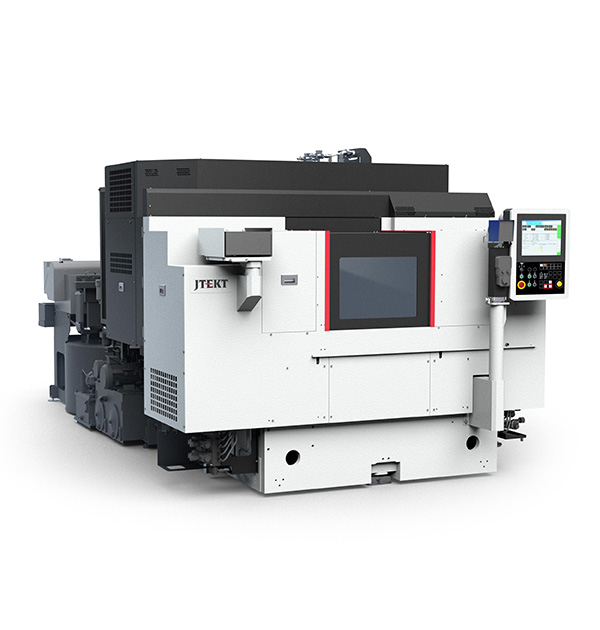

GL32Mi
Grinding diameter (mm) φ0～φ150 Distance between centers (mm) 350/630 Wheel diameter (mm) φ350[φ430] - By industry： Automobile Agricultural Machinery/Construction Equipment
- By subject： High Efficiency Automation Productivity Improvement
-
Grinding centers

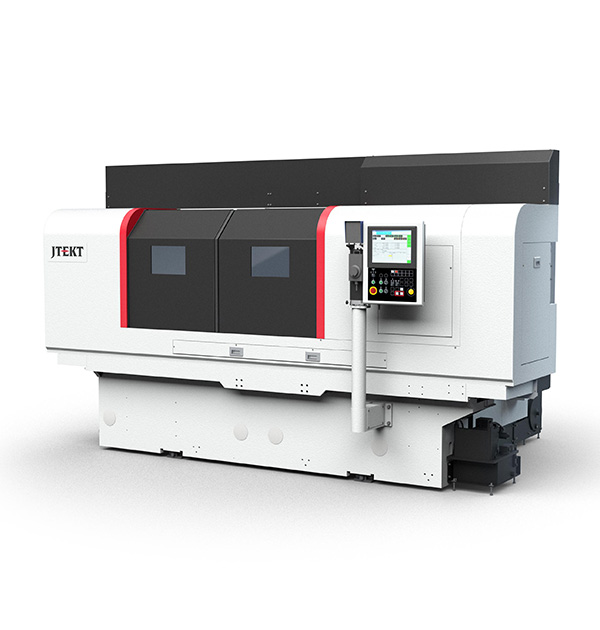

TG4
Grinding diameter (mm) OD: φ220
ID: φ120Distance between centers (mm) 320/630 Wheel diameter (mm) φ405[φ350] -
CBN crankshaft grinders

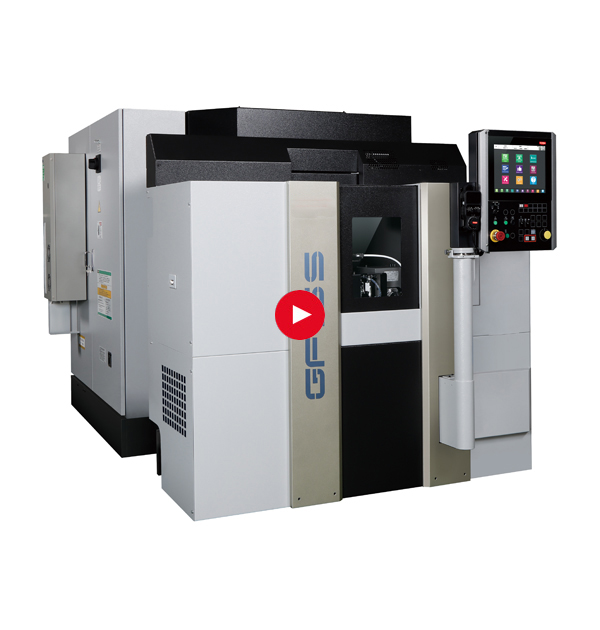

GF16S
Grinding diameter (mm) φ10～φ160 Workpiece length (mm) 250 / 320 Wheel diameter (mm) φ350 -
CBN crankshaft grinders

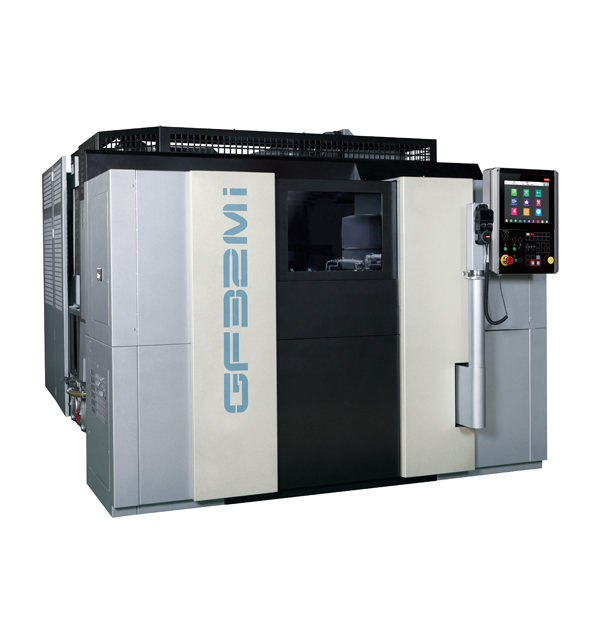

GF32Mi
Grinding diameter (mm) φ0～φ70 Distance between centers (mm) 350/630 Wheel diameter (mm) φ430 -
CBN crankshaft grinders

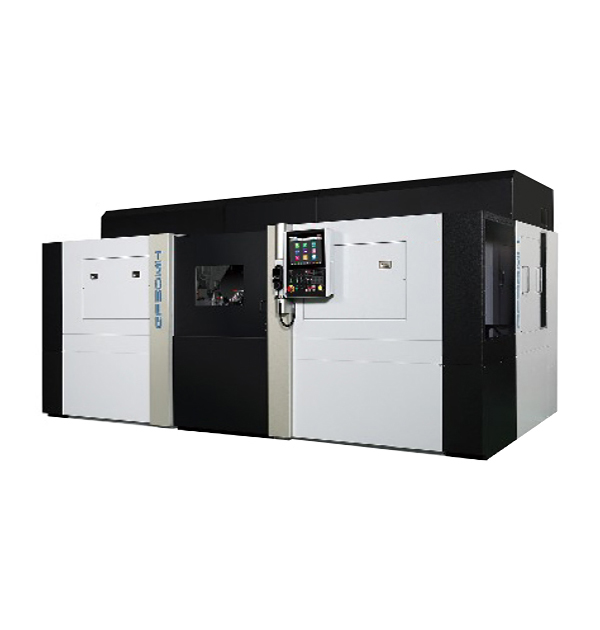

GF50MS / GF50MH
Grinding diameter (mm) φ0～φ85 Distance between centers (mm) 700 Wheel diameter (mm) φ650 -
CBN camshaft grinders

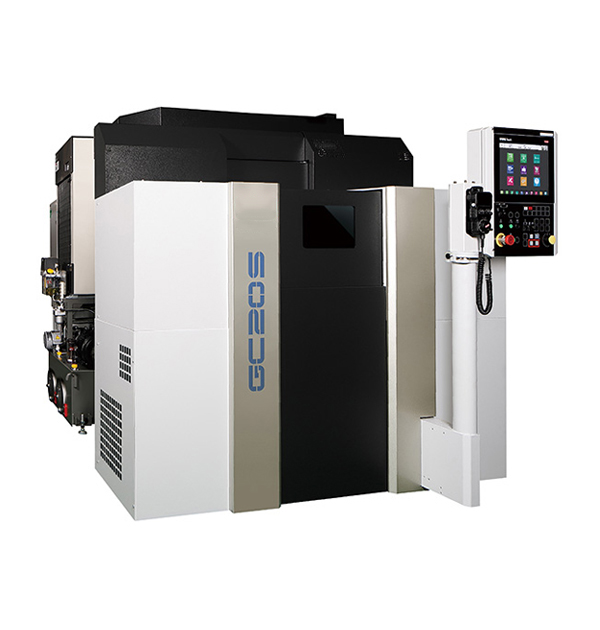

GC20S
Grinding diameter (mm) φ0～φ300 Distance between centers (mm) 500 Wheel diameter (mm) φ350[φ70/φ100/φ150] -
CBN camshaft grinders

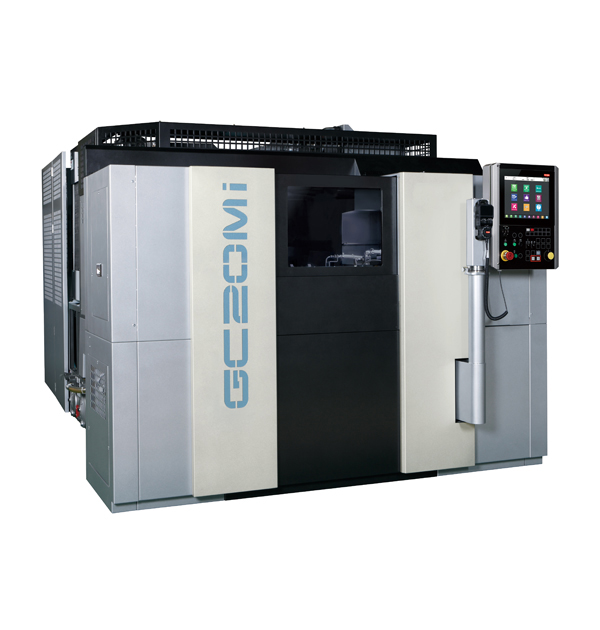

GC20Mi
Grinding diameter (mm) φ0～φ300 Distance between centers (mm) 350/630 Wheel diameter (mm) φ350[φ100/φ150] -
CBN camshaft grinders

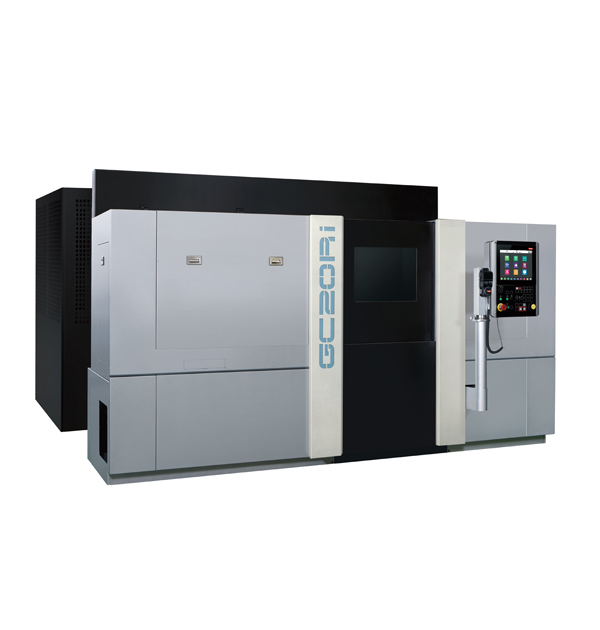

GC20Ri
Grinding diameter (mm) φ300 Distance between centers (mm) 630 Wheel diameter (mm) φ350[φ120] -
ID Grinder

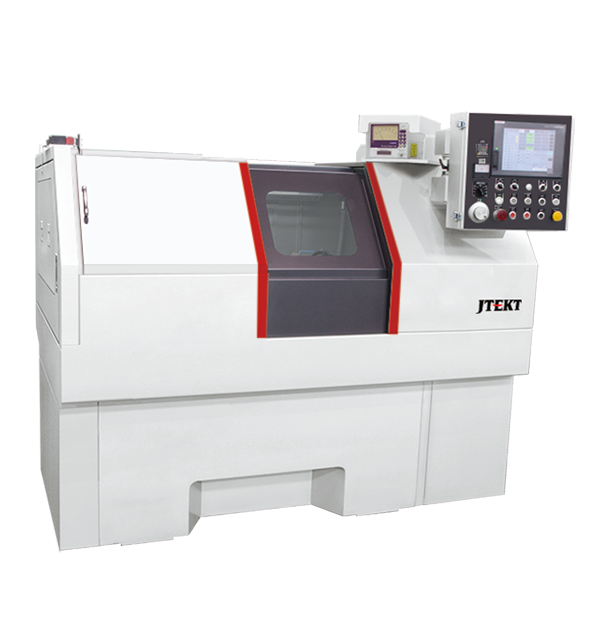

KIH80Ⅱ
Grinding Capacity：I.D. (Max.)[mm] φ10～φ80 Grinding Capacity：T (Max.)[mm] 50 G.W. Size：O.D. (Max.)[mm] φ50 -
OD grinder

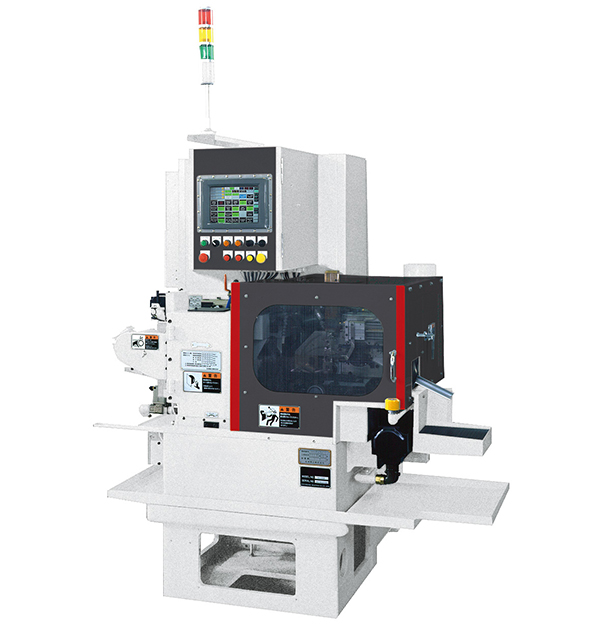

1M350
Grinding Capacity：O.D. (Max.)[mm] φ19 Grinding Capacity：T (Max.)[mm] 18 G.W. Size：O.D. (Max.)[mm] φ355 - By industry： Automobile Industrial Machinery Agricultural Machinery/Construction Equipment
- By subject： High Precision Automation
-
OD grinder

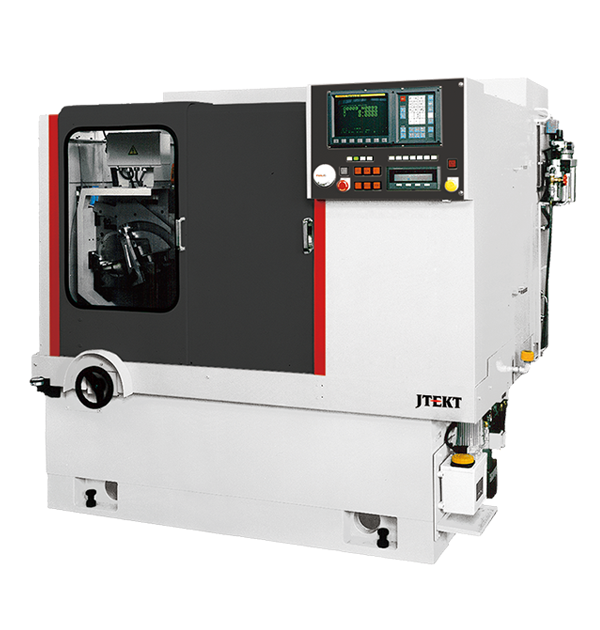

3RG450
Grinding Capacity：O.D. (Max.)[mm] φ150 Grinding Capacity：T (Max.)[mm] 50 G.W. Size：O.D. (Max.)[mm] φ455 - By industry： Automobile Industrial Machinery Agricultural Machinery/Construction Equipment
- By subject： High Precision Automation
-
OD grinder

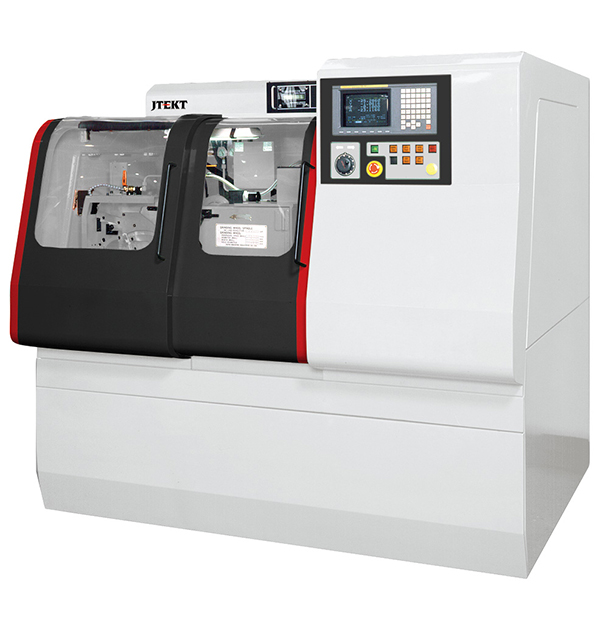

3RG610
Grinding Capacity：O.D. (Max.)[mm] φ230 Grinding Capacity：T (Max.)[mm] 130 G.W. Size：O.D. (Max.)[mm] φ610 - By industry： Automobile Industrial Machinery Agricultural Machinery/Construction Equipment
- By subject： High Precision Automation
-
x広幅円筒研削盤

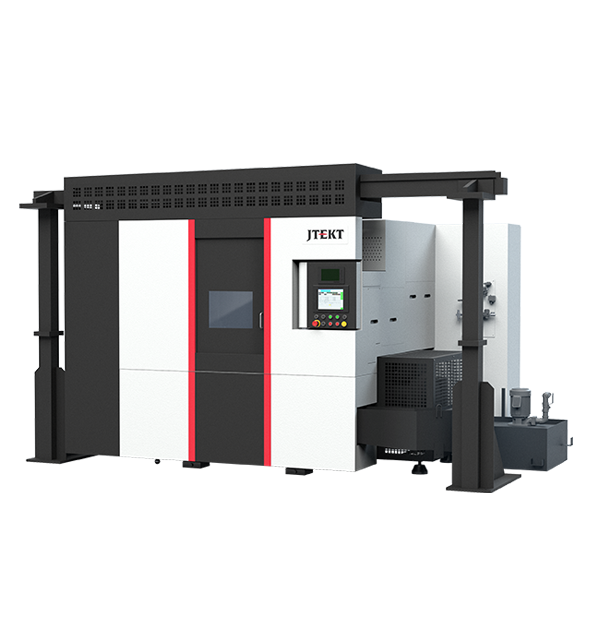

C6040E
Grinding diameter (Max.)[mm] φ120 Distance between centers (Max.)[mm] 450 Wheel diameter [mm] φ610 - By industry： Automobile Agricultural Machinery/Construction Equipment
- By subject： High Precision Automation Process Consolidation
-
Outer groove grinder

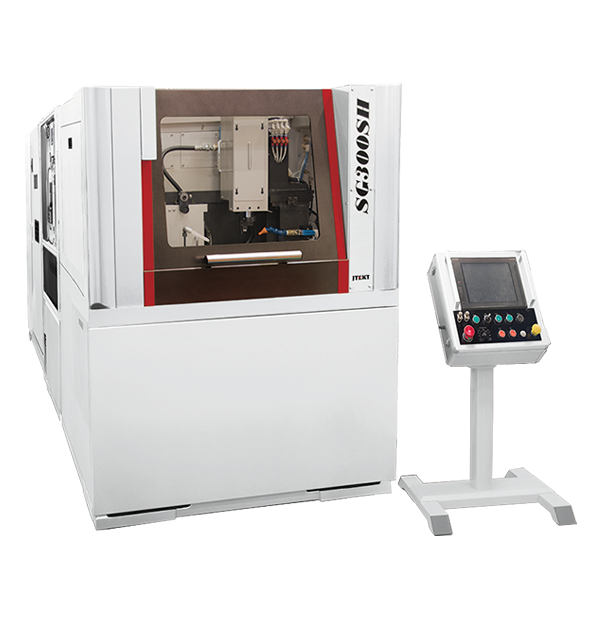

SG300SH
Grinding Capacity：O.D. (Max.)[mm] φ60 Grinding Capacity：Outer Groove 【Please contact us for details】 G.W. Size：O.D. (Max.)[mm] φ300 - By industry： Automobile Agricultural Machinery/Construction Equipment
- By subject： High Precision Automation
-
Internal groove grinder

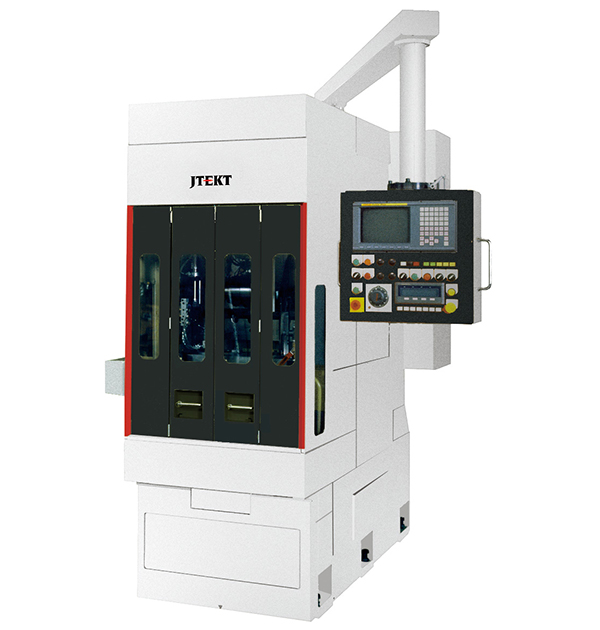

SAM084
Grinding Capacity：O.D. (Max.)[mm] φ105 Grinding Capacity：T (Max.)[mm] 35 G.W. Size：Inner Groove (Min.)[mm] 4 - By industry： Electrical machinery・Electrical
- By subject： High Precision Automation
-
Vertical spindle type grinder

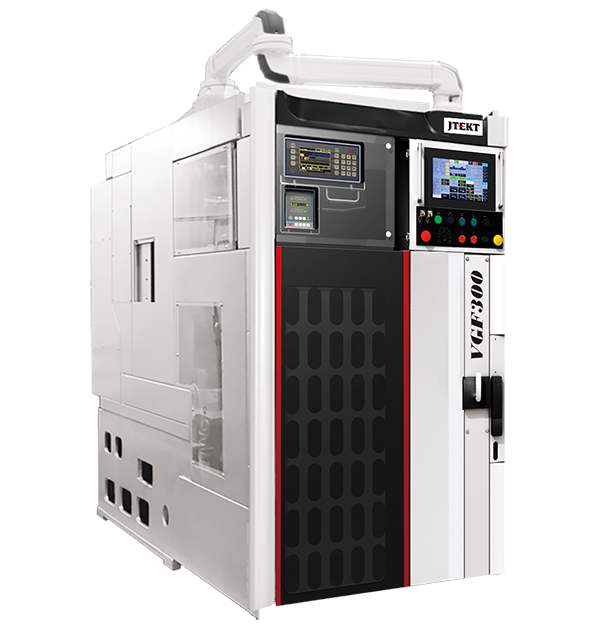

VGF300
Grinding Capacity：O.D. (Max.)[mm] φ350 Grinding Capacity：T (Max.)[mm] 180 G.W. Size：O.D. (Max.)[mm] Inner：φ305
Outer：φ150 -
Vertical spindle type grinder

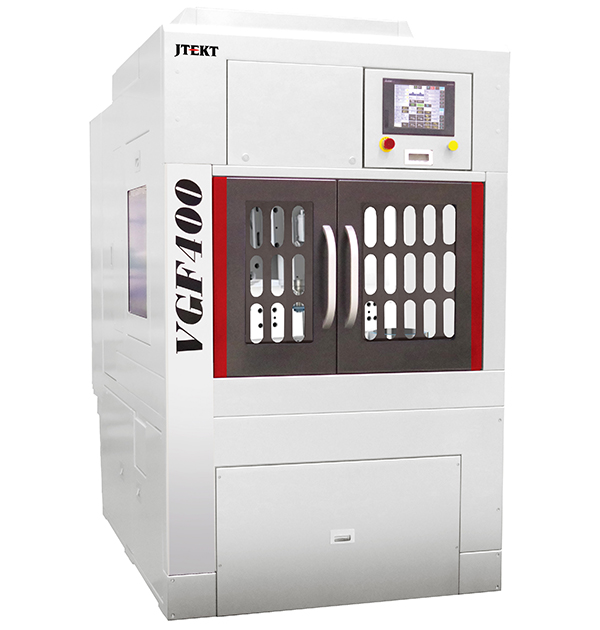

VGF400
Grinding Capacity：O.D. (Max.)[mm] φ400 Grinding Capacity：T (Max.)[mm] 180 G.W. Size：Inner Groove (Min.)[mm] Inner：φ405
Outer：φ100 -
Multi-Head grinder

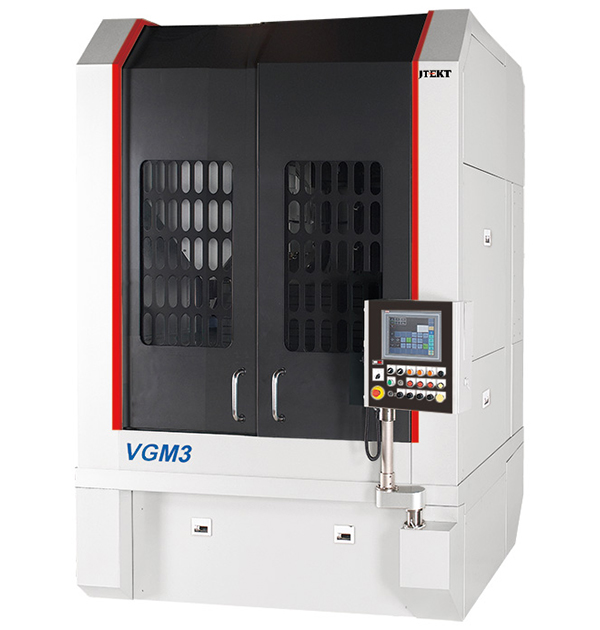

VGM3
Grinding Capacity：O.D.&I.D (Max.)[mm] φ300 Grinding Capacity：T (Max.)[mm] 250 G.W. Size：O.D.（Max.）[mm] Inner：φ180
Outer：φ355- By industry： Aircraft/Ship/Transportation Machinery Industrial Machinery Agricultural Machinery/Construction Equipment Precision Mechanical Equipment
- By subject： High Precision Complex Machining/5-axis Machining Automation Productivity Improvement Compact and Space-Saving Single Unit for Three Rolls Process Consolidation
-
Multi-Head grinder

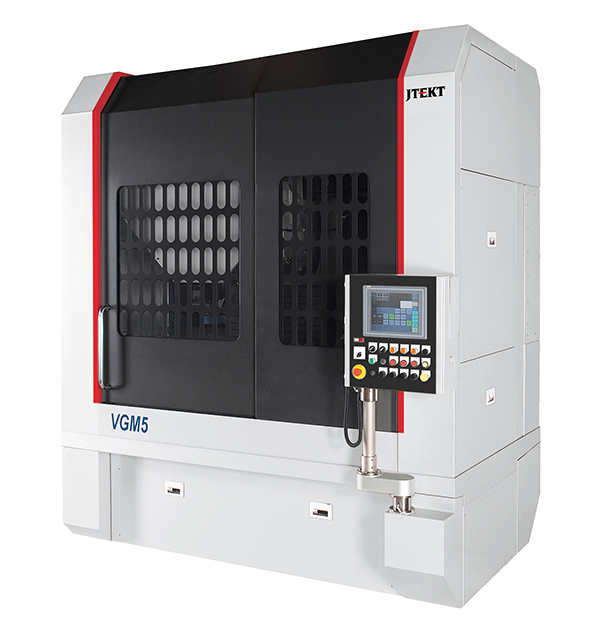

VGM5
Grinding Capacity：O.D.&I.D (Max.)[mm] φ500 Grinding Capacity：T (Max.)[mm] 250 G.W. Size：O.D.（Max.）[mm] Inner：φ205
Outer：φ405- By industry： Aircraft/Ship/Transportation Machinery Industrial Machinery Agricultural Machinery/Construction Equipment Precision Mechanical Equipment
- By subject： High Precision Complex Machining/5-axis Machining Automation Productivity Improvement Compact and Space-Saving Single Unit for Three Rolls Process Consolidation
-
x立形複合研削盤

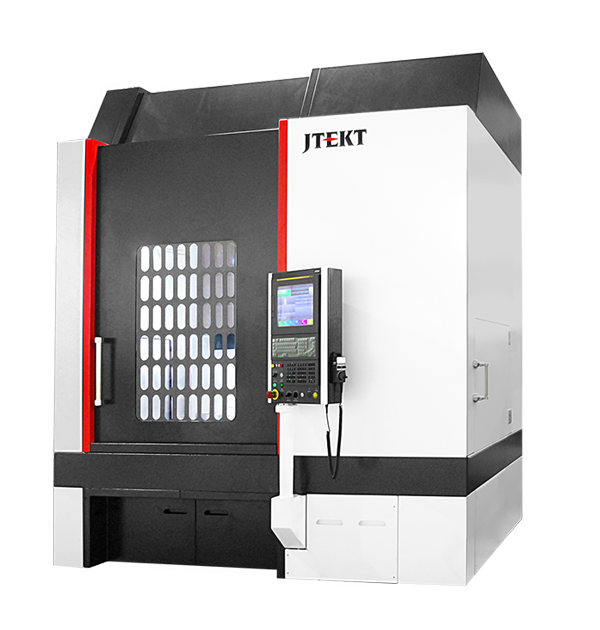

G3VU
Grinding Capacity: O.D. (Max.)[mm] φ500/φ800 Grinding Capacity: T (Max.)[mm] 600 ATC Capacity [tools] 6 - By industry： Automobile Industrial Machinery Agricultural Machinery/Construction Equipment Precision Mechanical Equipment
- By subject： High Precision Complex Machining/5-axis Machining Automation Productivity Improvement Easy of Use Compact and Space-Saving Single Unit for Three Rolls Process Consolidation
-
CVT pulley grinder

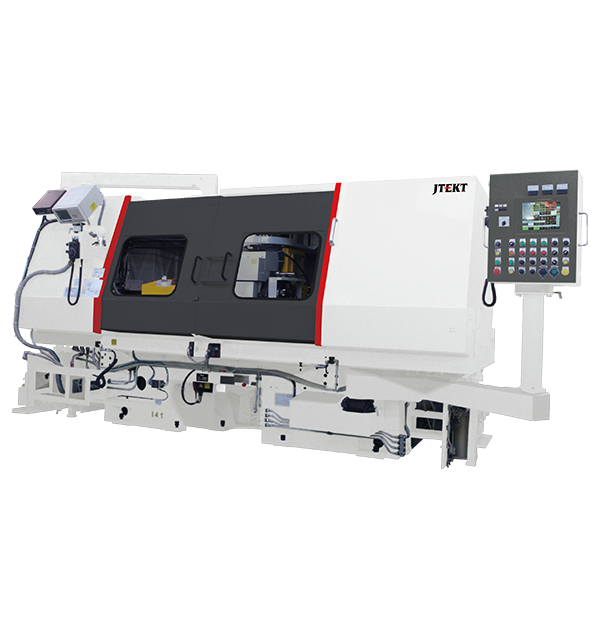

MG32AIP
Grinding Capacity：O.D. (Max.)[mm] φ200 Grinding Capacity：T (Max.)[mm] 80 G.W. Size：O.D.（Max.）[mm] (for Bevel Face)：φ610
(for I.D.)：φ50 -
Silicon wafer grinder

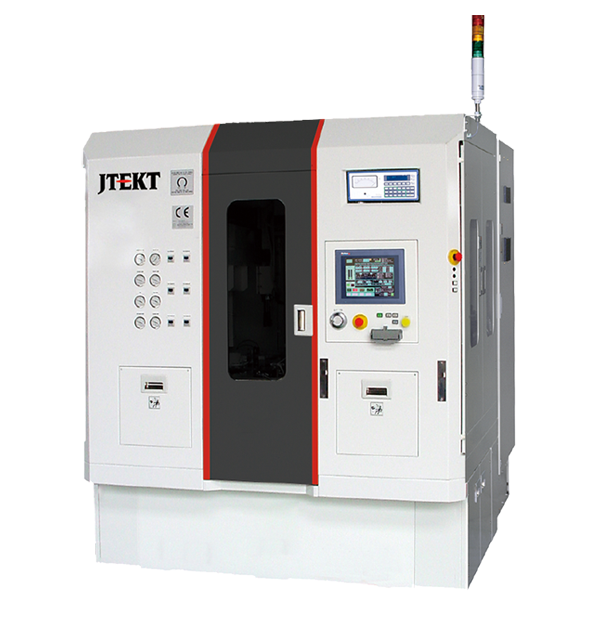

DXSG320
Grinding Capacity：O.D. (Max.)[mm] φ200/φ300 G.W. Size：O.D. (Max.)[mm] φ110/φ160 - By industry： Energy
- By subject： High Precision Automation Difficult-to-machine Material Machining Compact and Space-Saving Process Consolidation
-
Hard and brittle wafers grinder

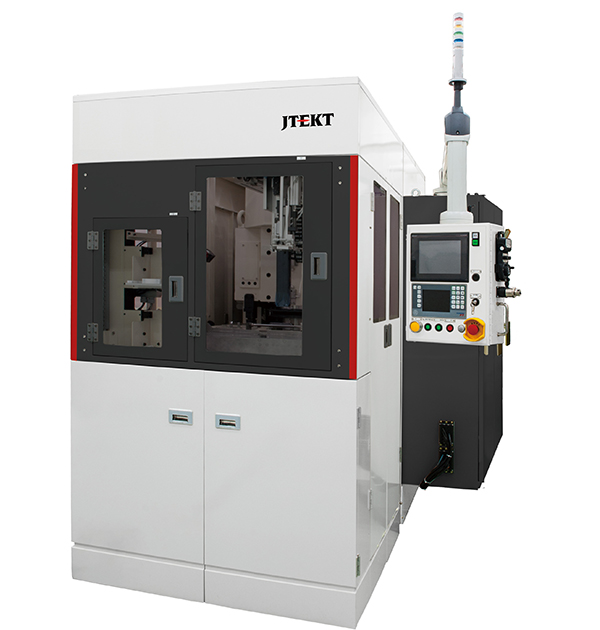

R631DF
Grinding Capacity：O.D. (Max.)[mm] φ200 Grinding Capacity：T (Max.)[mm] 2.5 G.W. Size：O.D. (Max.)[mm] φ305 - By industry： Energy
- By subject： High Precision Automation Difficult-to-machine Material Machining Compact and Space-Saving Process Consolidation
-
Hard and brittle wafers grinder

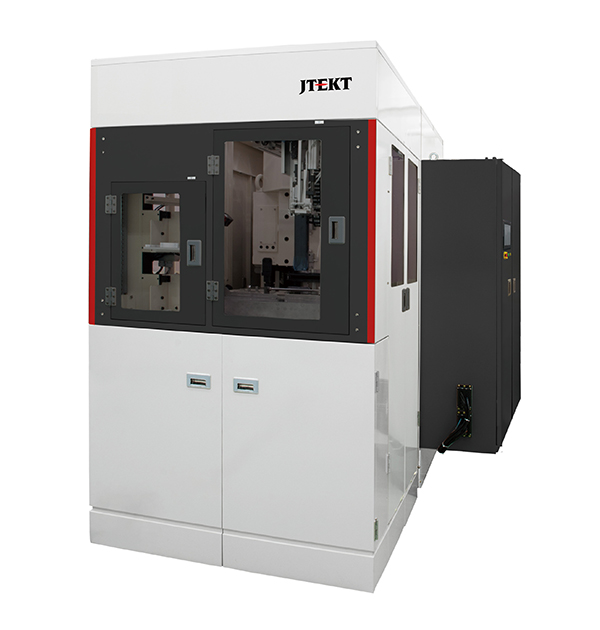

R631BM
Grinding Capacity O.D. (Max.)[mm] φ200 Grinding Capacity T (Max.)[mm] 2.5 G.W. Size O.D. (Max.)[mm] φ305 - By industry： Energy
- By subject： High Precision Automation Difficult-to-machine Material Machining Compact and Space-Saving Process Consolidation
-
Hard and brittle wafers grinder

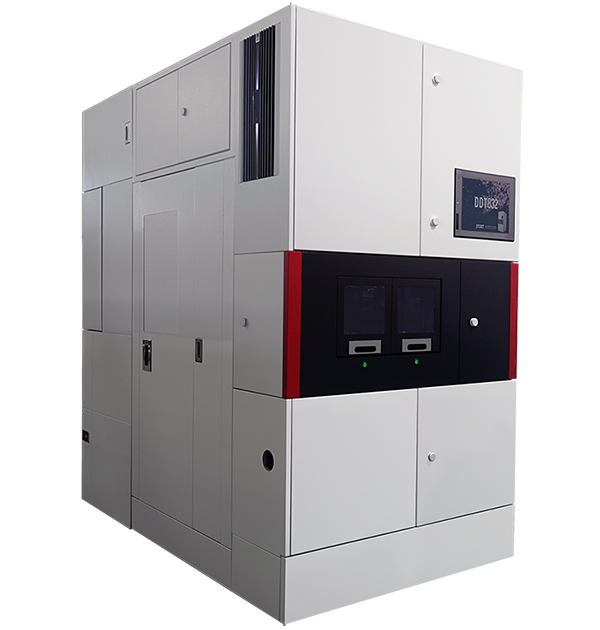

DDT832
Grinding Capacity O.D. (Max.)[mm] φ100～φ200 Grinding Capacity T (Max.)[mm] 2 G.W. Size O.D. (Max.)[mm] φ300 -
Centerless grinder

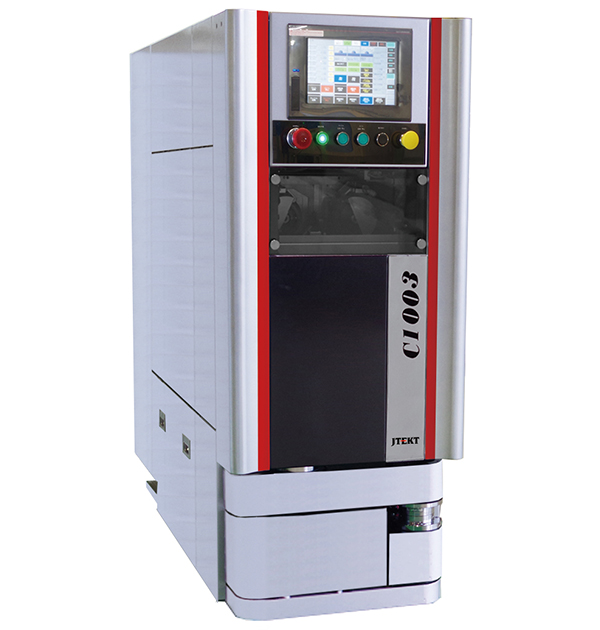

C1003
Grinding Capacity：O.D. (Max.)[mm] φ5 G.W. Size：O.D. (Max.)[mm] φ100 G.W. Size： Width [mm] 30 - By industry： Automobile Electrical machinery・Electrical Tools
- By subject： High Precision Automation Compact and Space-Saving
-
Centerless grinder
KCL50
Grinding Capacity：O.D. (Min.～Max.)[mm] φ0.2～φ5.0 G.W. Size：O.D. (Max.～Min.)[mm] φ150～φ120 G.W. Size：Width [mm] 50 - By industry： Automobile Electrical machinery・Electrical Tools
- By subject： High Precision Automation Compact and Space-Saving Process Consolidation
-
Centerless grinder

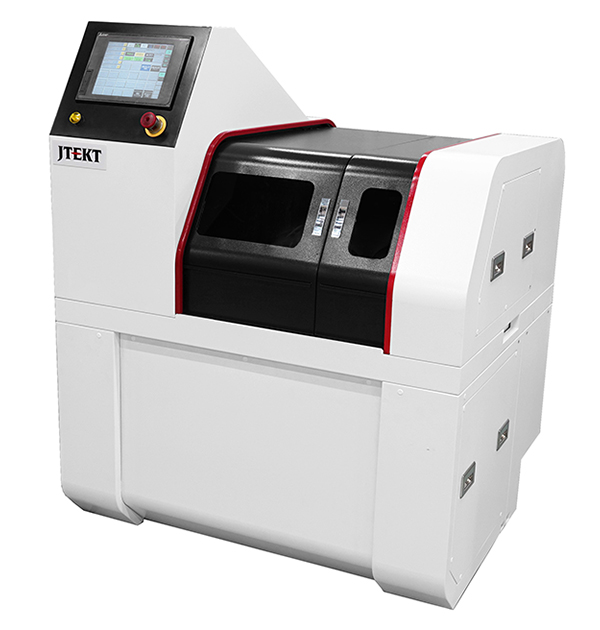

KCL50S
Grinding Capacity：O.D. (Min.～Max.)[mm] φ0.2～φ5.0 G.W. Size：O.D. (Max.～Min.)[mm] φ150～φ120 G.W. Size：Width [mm] 30 - By industry： Automobile Electrical machinery・Electrical Tools
- By subject： High Precision Automation Compact and Space-Saving Process Consolidation
-
Centerless grinder

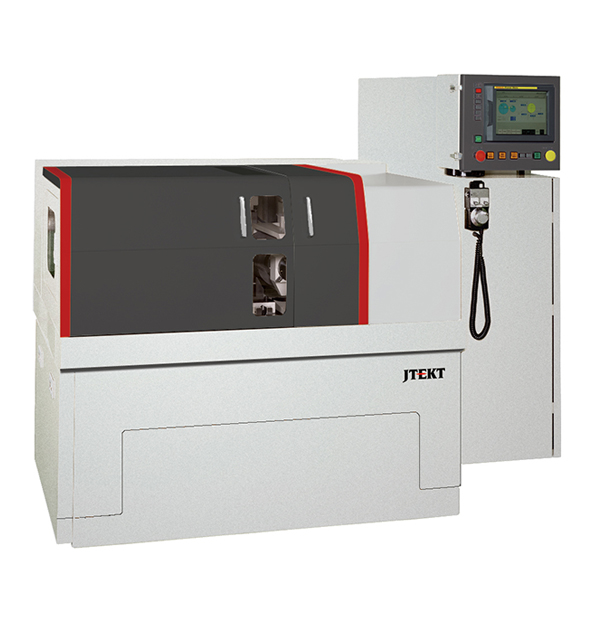

C3015F
Grinding Capacity：O.D. (Min.～Max.)[mm] φ0.8～φ25 G.W. Size：O.D. (Max.～Min.)[mm] φ305～φ225 G.W. Size：Width [mm] 150 - By industry： Automobile Agricultural Machinery/Construction Equipment Electrical machinery・Electrical Tools
- By subject： High Precision Automation
-
Centerless grinder

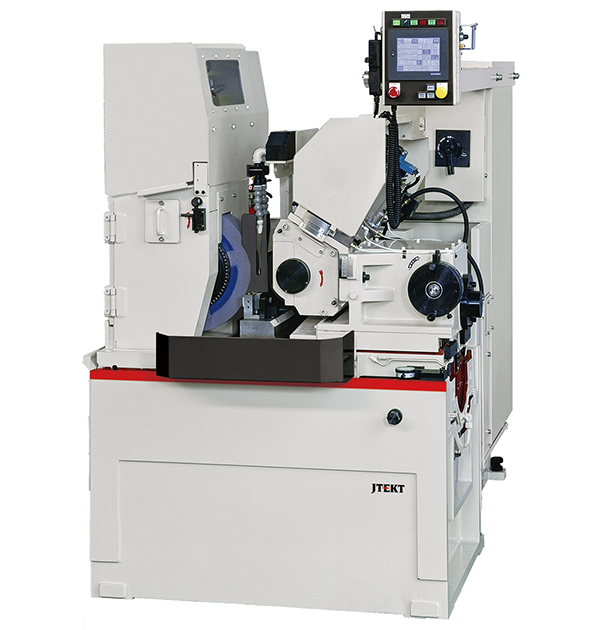

C3510
Grinding Capacity：O.D. (Min.～Max.)[mm] φ1.0～φ10 G.W. Size：O.D. (Max.～Min.)[mm] φ355～φ255 G.W. Size：Width [mm] 100 -
Centerless grinder

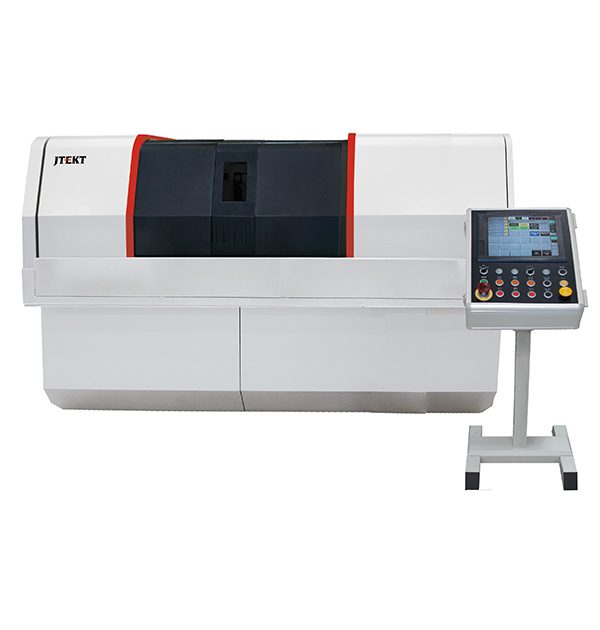

4515C
Grinding Capacity：O.D. (Min.～Max.)[mm] φ1.2～φ40 G.W. Size：O.D. (Max.～Min.)[mm] φ455～φ360 G.W. Size：Width [mm] 150 - By industry： Automobile Agricultural Machinery/Construction Equipment Electrical machinery・Electrical Tools
- By subject： High Precision Automation
-
Centerless grinder

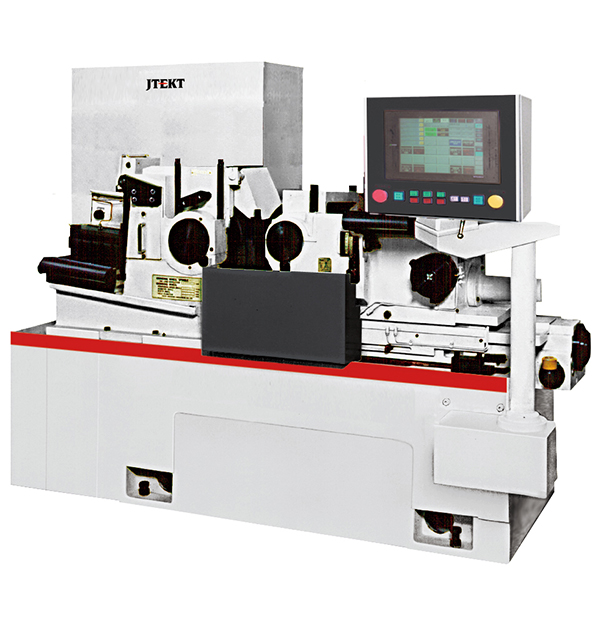

4520C
Grinding Capacity：O.D. (Min.～Max.)[mm] φ1.2～φ40 G.W. Size：O.D. (Max.～Min.)[mm] φ455～φ320 G.W. Size：Width [mm] 205 - By industry： Automobile Agricultural Machinery/Construction Equipment Electrical machinery・Electrical Tools
- By subject： High Precision Automation
-
Centerless grinder

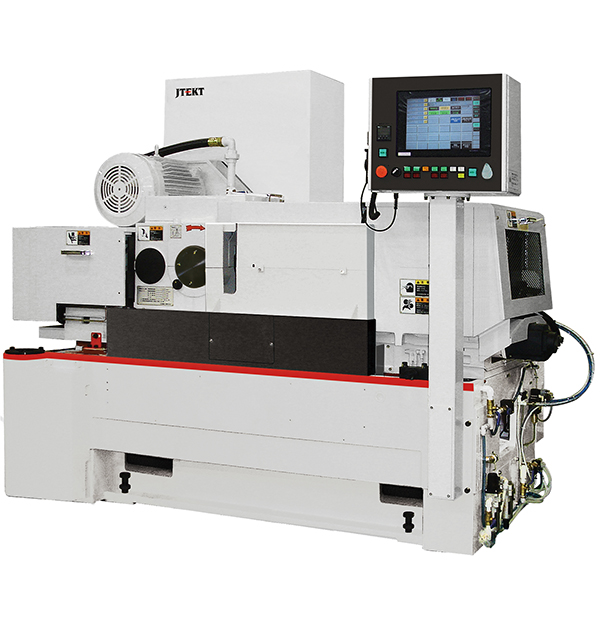

C4520F
Grinding Capacity：O.D. (Min.～Max.)[mm] φ1.0～φ50 G.W. Size：O.D. (Max.～Min.)[mm] φ455～φ320 G.W. Size：Width [mm] 205 -
Centerless grinder
6015C
Grinding Capacity：O.D. (Min.～Max.)[mm] φ1.2～φ60 G.W. Size：O.D. (Max.～Min.)[mm] φ610～φ470 G.W. Size：Width [mm] 150 - By industry： Automobile Agricultural Machinery/Construction Equipment Electrical machinery・Electrical Tools
- By subject： High Precision Automation
-
Centerless grinder

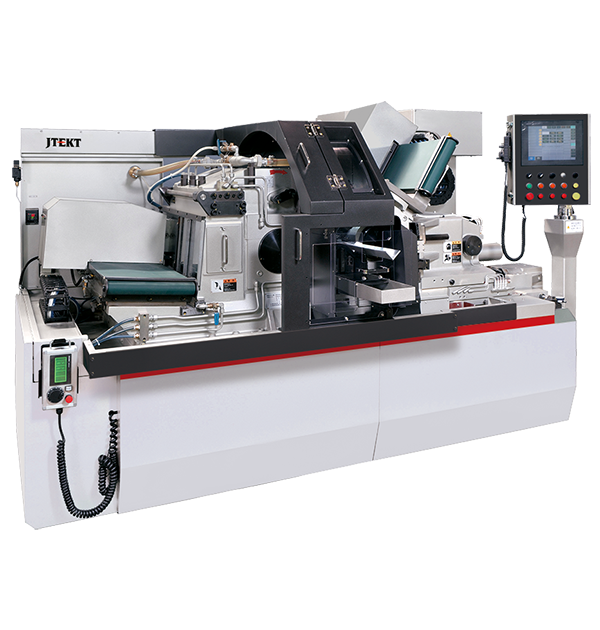

C6020
Grinding Capacity：O.D. (Min.～Max.)[mm] φ1.6～φ120 G.W. Size：O.D. (Max.～Min.)[mm] φ610～φ470 G.W. Size：Width [mm] 205 -
Centerless grinder
C6030
Grinding Capacity：O.D. (Min.～Max.)[mm] φ1.6～φ120 G.W. Size：O.D. (Max.～Min.)[mm] φ610～φ470 G.W. Size：Width [mm] 305 -
Centerless grinder
C6040
Grinding Capacity：O.D. (Min.～Max.)[mm] φ1.6～φ120 G.W. Size：O.D. (Max.～Min.)[mm] φ610～φ470 G.W. Size：Width [mm] 405 -
Centerless grinder

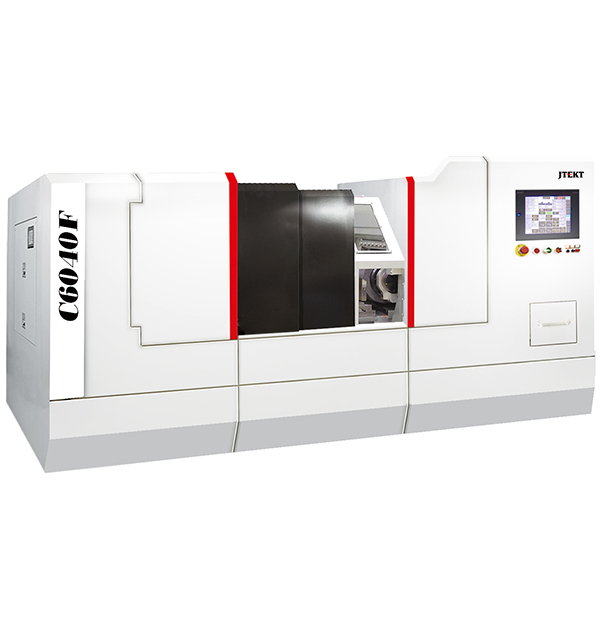

C6040F
Grinding Capacity：O.D. (Min.～Max.)[mm] φ1.6～φ120 G.W. Size：O.D. (Max.～Min.)[mm] φ610～φ470 G.W. Size：Width [mm] 405 -
Centerless grinder

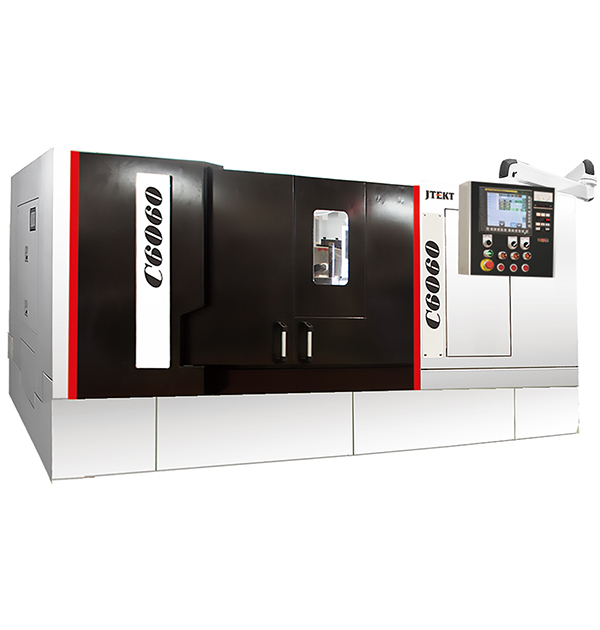

C6060
Grinding Capacity：O.D. (Min.～Max.)[mm] φ5～φ150 G.W. Size：O.D. (Max.～Min.)[mm] φ610～φ470 G.W. Size：Width [mm] 610 -
Centerless grinder

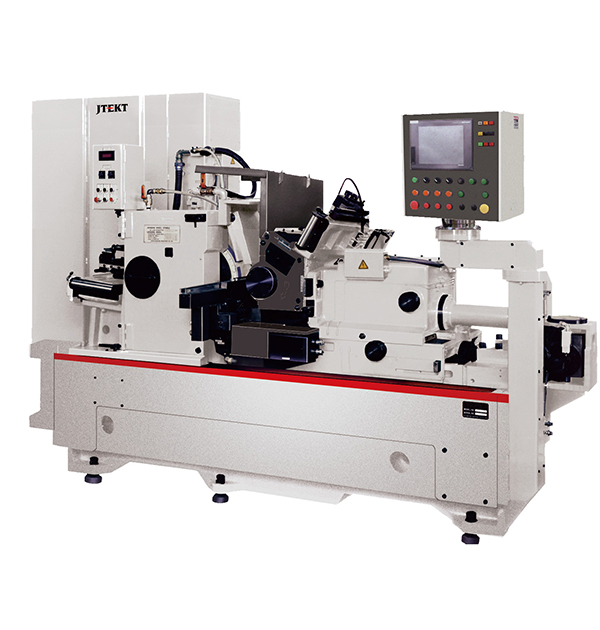

KC200
Grinding Capacity：O.D. (Min.～Max.)[mm] φ1.6～φ120 G.W. Size：O.D. (Max.～Min.)[mm] φ610～φ470 G.W. Size：Width [mm] 205 -
Centerless grinder
KC300
Grinding Capacity：O.D. (Min.～Max.)[mm] φ1.6～φ120 G.W. Size：O.D. (Max.～Min.)[mm] φ610～φ470 G.W. Size：Width [mm] 305 -
Centerless grinder

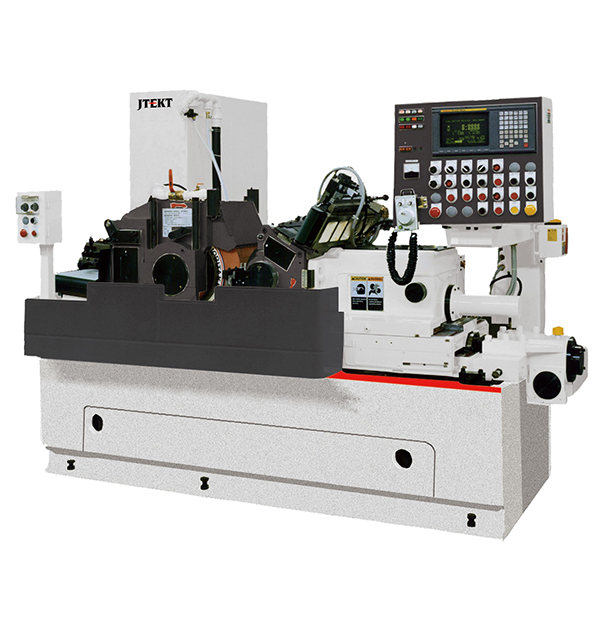

KC400
Grinding Capacity：O.D. (Min.～Max.)[mm] φ3.0～φ120 G.W. Size：O.D. (Max.～Min.)[mm] φ610～φ470 G.W. Size：Width [mm] 405 -
Centerless grinder
KC500
Grinding Capacity：O.D. (Min.～Max.)[mm] φ5.0～φ150 G.W. Size：O.D. (Max.～Min.)[mm] φ610～φ470 G.W. Size：Width [mm] 510 -
Centerless grinder

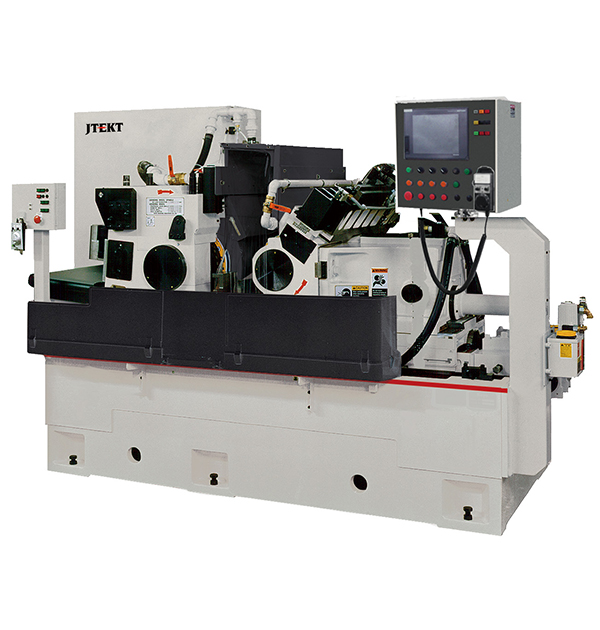

KC600
Grinding Capacity：O.D. (Min.～Max.)[mm] φ5.0～φ150 G.W. Size：O.D. (Max.～Min.)[mm] φ610～φ470 G.W. Size：Width [mm] 610 -
Centerless grinder

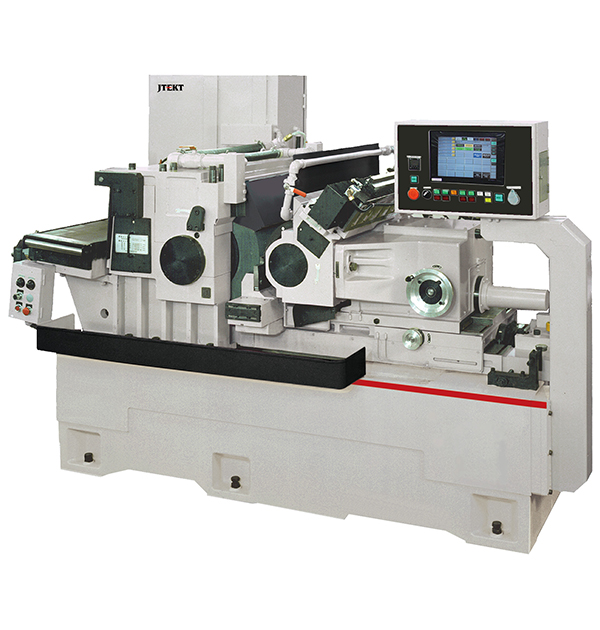

KC700
Grinding Capacity：O.D. (Min.～Max.)[mm] φ5.0～φ150 G.W. Size：O.D. (Max.～Min.)[mm] φ610～φ470 G.W. Size：Width [mm] 710 -
Centerless grinder
KC800
Grinding Capacity：O.D. (Min.～Max.)[mm] φ5.0～φ150 G.W. Size：O.D. (Max.～Min.)[mm] φ610～φ470 G.W. Size：Width [mm] 810 -
Centerless grinder
KC300A
Grinding Capacity：O.D. (Min.～Max.)[mm] φ1.6～φ120 G.W. Size：O.D. (Max.～Min.)[mm] φ610～φ470 G.W. Size：Width [mm] 305 -
Centerless grinder

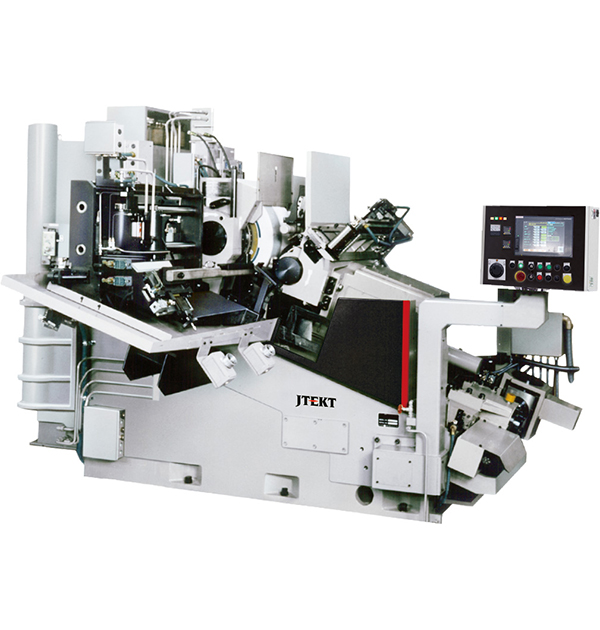

KC400A
Grinding Capacity：O.D. (Min.～Max.)[mm] φ3.0～φ120 G.W. Size：O.D. (Max.～Min.)[mm] φ610～φ470 G.W. Size：Width [mm] 405 -
Centerless grinder
KC500A
Grinding Capacity：O.D. (Min.～Max.)[mm] φ5.0～φ150 G.W. Size：O.D. (Max.～Min.)[mm] φ610～φ470 G.W. Size：Width [mm] 510 -
Centerless grinder
KC600A
Grinding Capacity：O.D. (Min.～Max.)[mm] φ5.0～φ150 G.W. Size：O.D. (Max.～Min.)[mm] φ610～φ470 G.W. Size：Width [mm] 610 -
Centerless grinder
KC700A
Grinding Capacity：O.D. (Min.～Max.)[mm] φ5.0～φ150 G.W. Size：O.D. (Max.～Min.)[mm] φ610～φ470 G.W. Size：Width [mm] 710 -
Centerless grinder
KC800A
Grinding Capacity：O.D. (Min.～Max.)[mm] φ5.0～φ150 G.W. Size：O.D. (Max.～Min.)[mm] φ610～φ470 G.W. Size：Width [mm] 810 -
Double disc grinder (KVD Series Vertical Spindle)

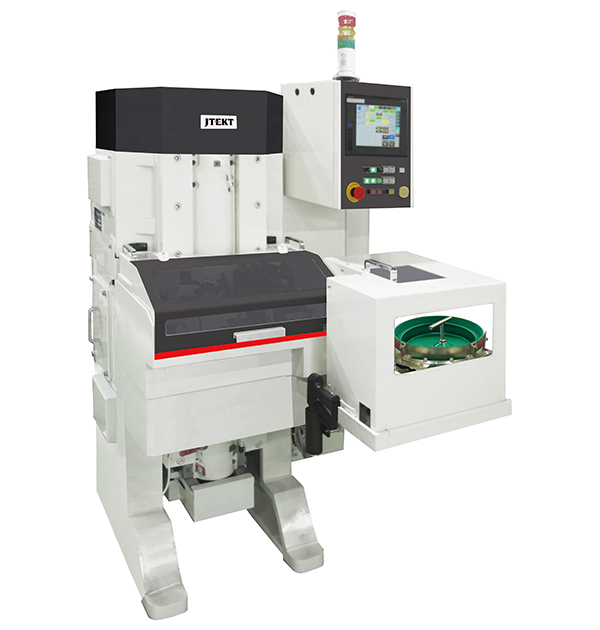

KVD200
Grinding Capacity：O.D. (Max.)[mm] φ10 Grinding Capacity：T (Max.)[mm] 6 G.W. Size：O.D. (Max.)[mm] φ200 - By industry： Agricultural Machinery/Construction Equipment
- By subject： High Precision Automation
-
Double disc grinder (KVD Series Vertical Spindle)

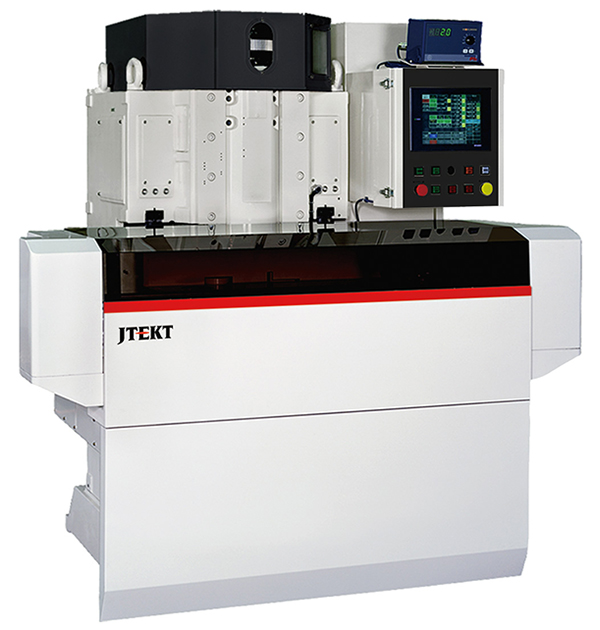

KVD300Ⅱ
Grinding Capacity：O.D. (Max.)[mm] φ100 Grinding Capacity：T (Max.)[mm] 50 G.W. Size：O.D. (Max.)[mm] φ305 -
Double disc grinder (KVD Series Vertical Spindle)

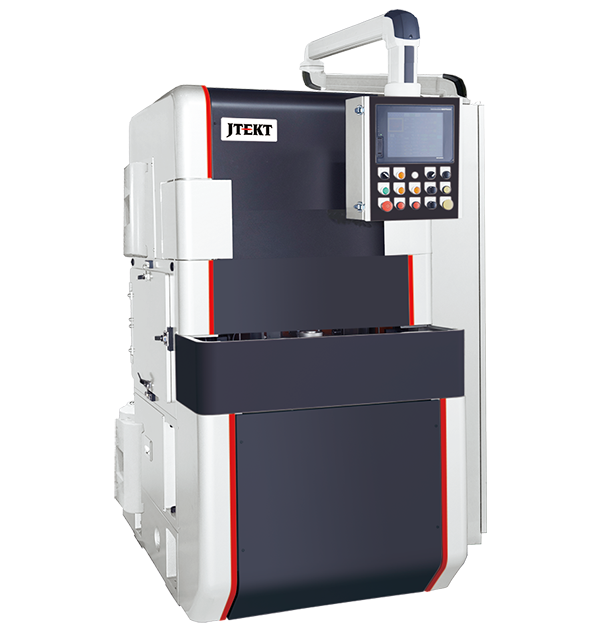

KVD350
Grinding Capacity：O.D. (Max.)[mm] φ150 Grinding Capacity：T (Max.)[mm] 50 G.W. Size：O.D. (Max.)[mm] φ355 -
Double disc grinder (KVD Series Vertical Spindle)
KVD450Ⅱ
Grinding Capacity：O.D. (Max.)[mm] φ200 Grinding Capacity：T (Max.)[mm] 50 G.W. Size：O.D. (Max.)[mm] φ450 -

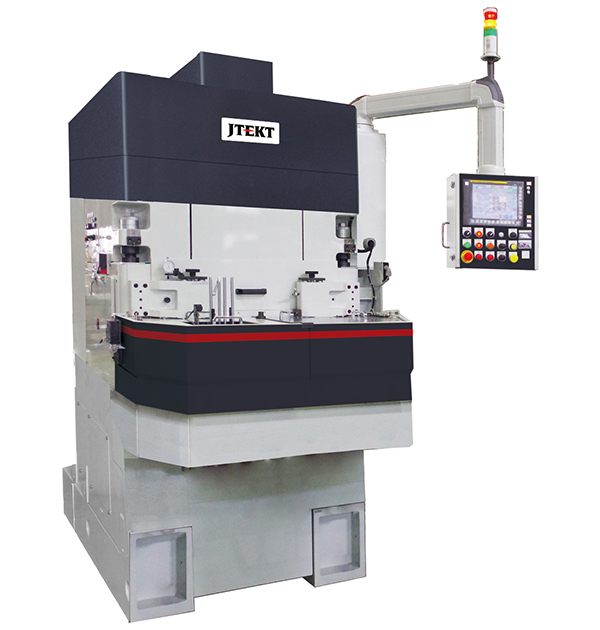

Double disc grinder (KVD Series Vertical Spindle)
KVD580
Grinding Capacity：O.D. (Max.)[mm] φ200 Grinding Capacity：T (Max.)[mm] 50 G.W. Size：O.D. (Max.)[mm] φ585 -
Double disc grinder (KVD Series Vertical Spindle)

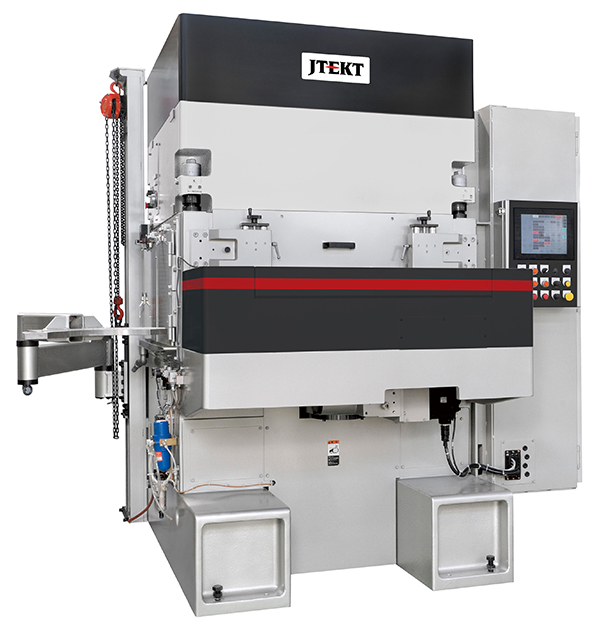

KVD760
Grinding Capacity：O.D. (Max.)[mm] φ220 Grinding Capacity：T (Max.)[mm] 50 G.W. Size：O.D. (Max.)[mm] φ760 -
Double disc grinder (Horizontal Spindle)

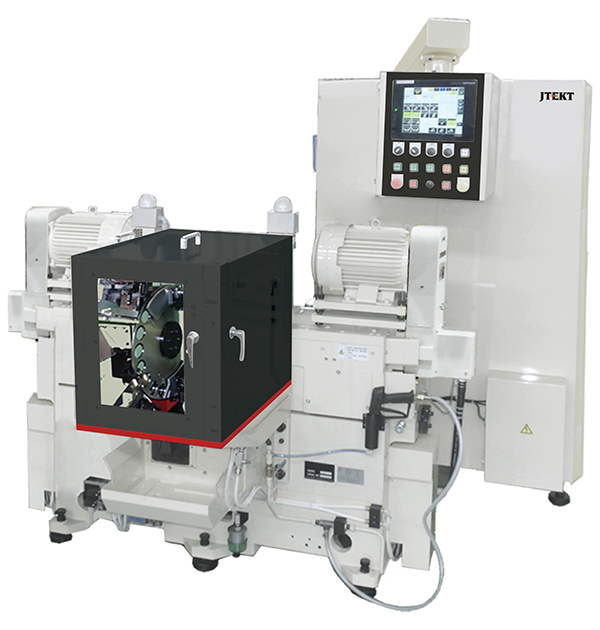

HD3
Grinding Capacity：O.D. (Max.)[mm] φ50 Grinding Capacity：T (Max.)[mm] 25 G.W. Size：O.D. (Max.)[mm] φ305 -

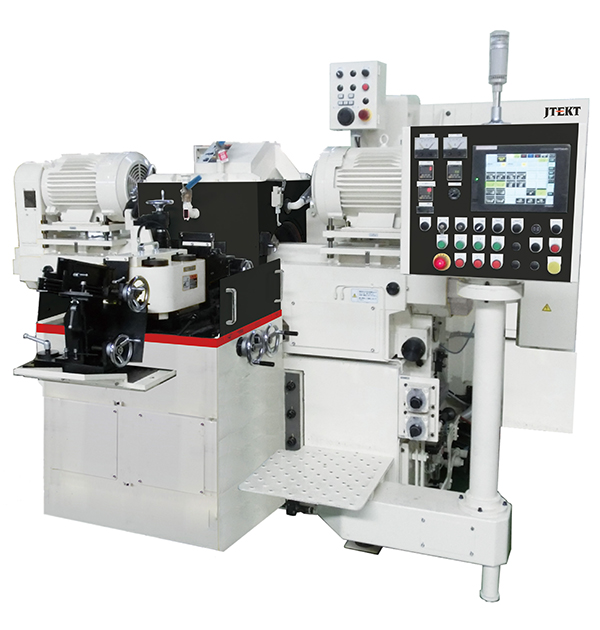

Double disc grinder (Horizontal Spindle)
HD5
Grinding Capacity：O.D. (Max.)[mm] φ150 Grinding Capacity：T (Max.)[mm] 25 G.W. Size：O.D. (Max.)[mm] φ585 -
Double disc grinder (Horizontal Spindle)
HD7
Grinding Capacity：O.D. (Max.)[mm] φ250 Grinding Capacity：T (Max.)[mm] 80 G.W. Size：O.D. (Max.)[mm] φ760 -
Double disc grinder (Horizontal Spindle)

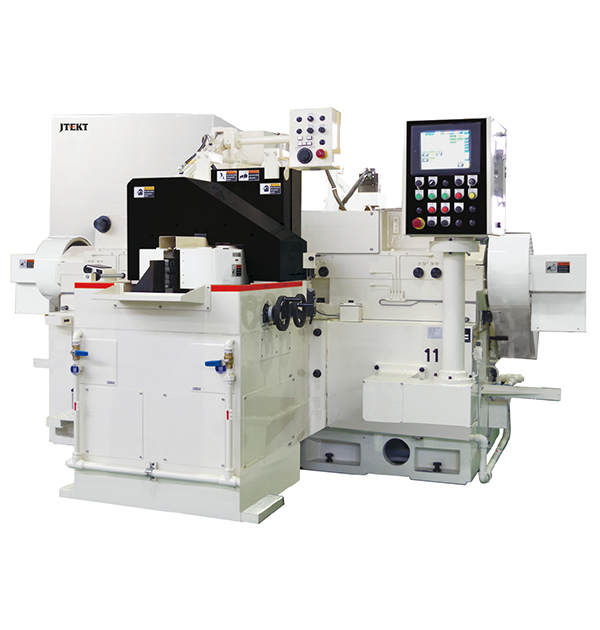

HD10
Grinding Capacity：O.D. (Max.)[mm] φ300 Grinding Capacity：T (Max.)[mm] 100 G.W. Size：O.D. (Max.)[mm] φ1,065 -
Mirror grinder

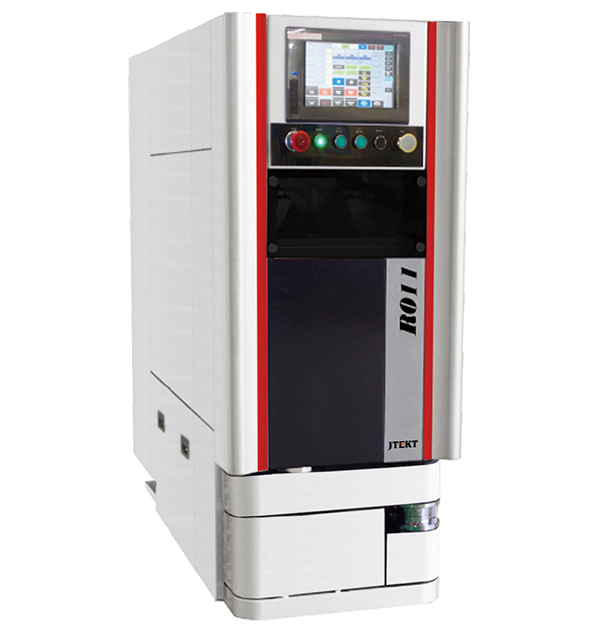

R011
Grinding Capacity：O.D. (Max.)[mm] φ20 Grinding Capacity：T (Max.)[mm] 30 G.W. Size：O.D. (Max.)[mm] φ40 - By subject： High Precision Automation Compact and Space-Saving
-
Mirror grinder

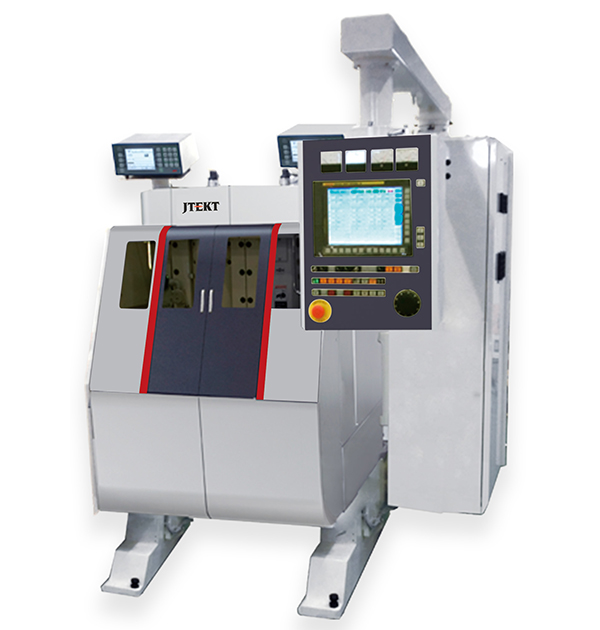

R421
Grinding Capacity：O.D. (Max.)[mm] φ100 Grinding Capacity：T (Max.)[mm] 50 G.W. Size：O.D. (Max.)[mm] φ180 -
Mirror grinder
R422
Grinding Capacity：O.D. (Max.)[mm] φ100 Grinding Capacity：T (Max.)[mm] 50 G.W. Size：O.D. (Max.)[mm] φ180 -
Mirror grinder

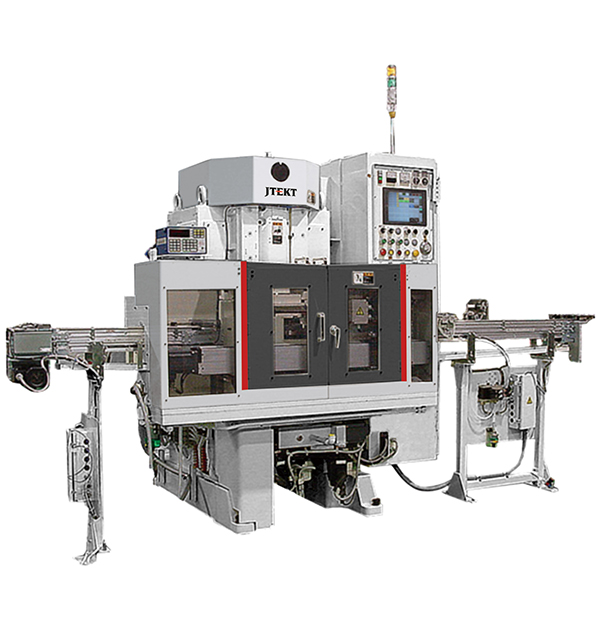

R431
Grinding Capacity：O.D. (Max.)[mm] φ100 Grinding Capacity：T (Max.)[mm] 50 G.W. Size：O.D. (Max.)[mm] φ305 -
Mirror grinder

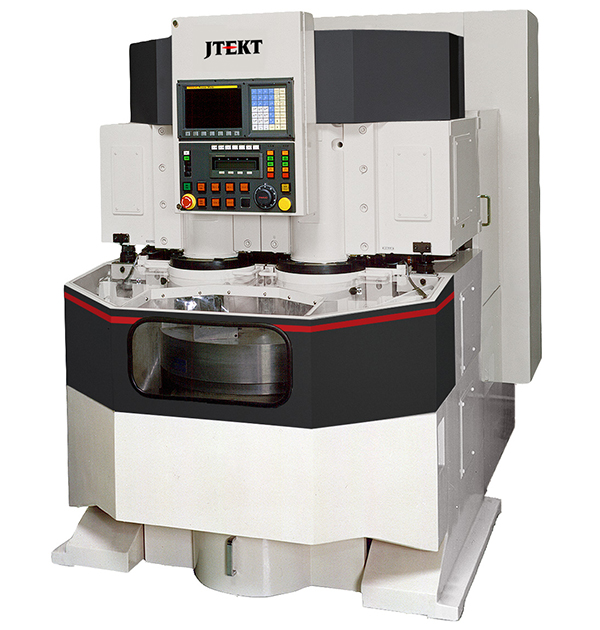

R631
Grinding Capacity：O.D. (Max.)[mm] φ125 Grinding Capacity：T (Max.)[mm] 35 G.W. Size：O.D. (Max.)[mm] φ305 -
Mirror grinder
R632
Grinding Capacity：O.D. (Max.)[mm] φ125 Grinding Capacity：T (Max.)[mm] 35 G.W. Size：O.D. (Max.)[mm] φ305 -
Mirror grinder

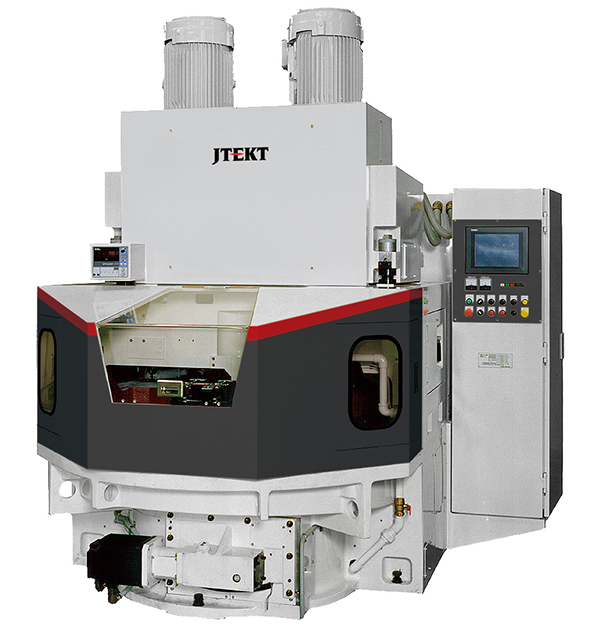

RV1
Grinding Capacity：O.D. (Max.)[mm] φ300 Grinding Capacity：T (Max.)[mm] 300 G.W. Size：O.D. (Max.)[mm] φ455 -
Mirror grinder
RV2
Grinding Capacity：O.D. (Max.)[mm] φ300 Grinding Capacity：T (Max.)[mm] 300 G.W. Size：O.D. (Max.)[mm] φ455 -
Hypoid gear grinder

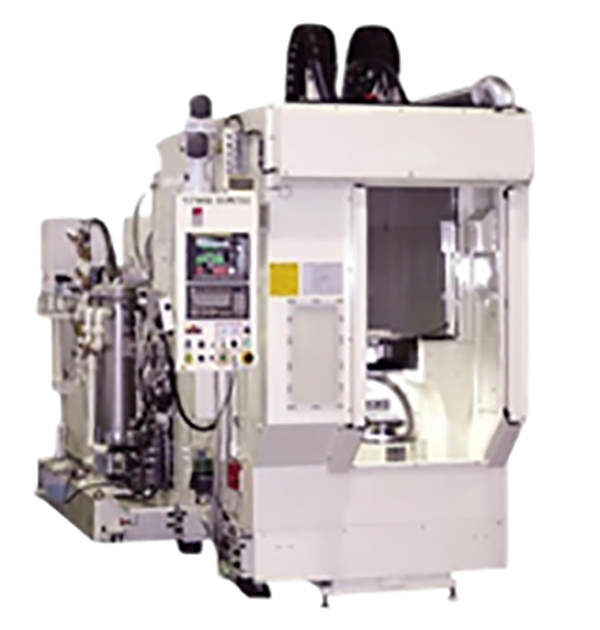

GTH-30N
Max module ８ Max outer diameter(RG) 300㎜ Grindstone spindle 4,000min-1
