Features . Outline

• High-pressure hydrogen valves are essential components that seal and supply hydrogen gas, supporting the safe and stable operation of high-pressure hydrogen systems.

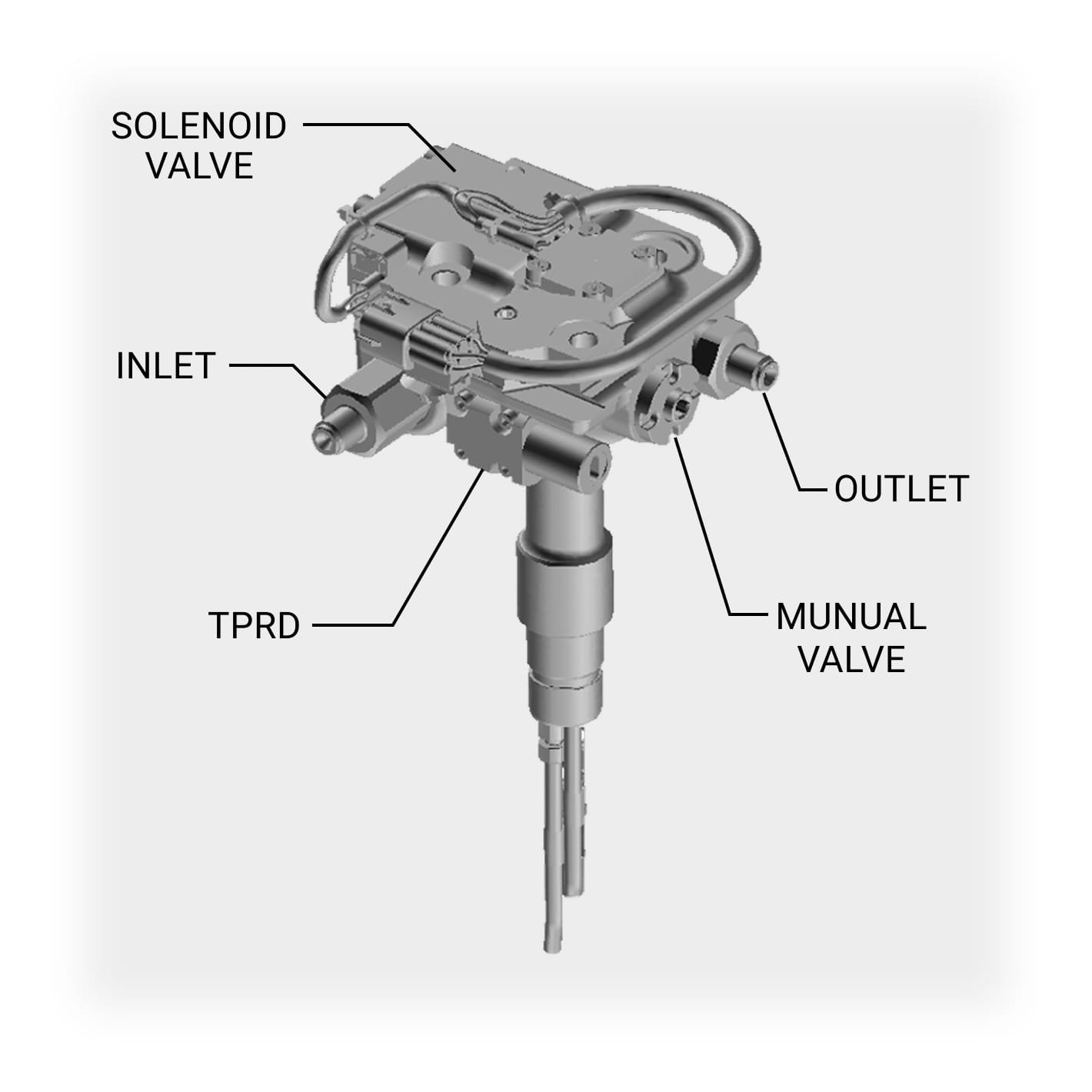

• An integrated solenoid valve controls hydrogen gas flow. The product also features tank temperature sensing and a thermally activated pressure relief device (TPRD) that safely releases hydrogen gas from the tank in the event of a fire.
• JTEKT’s proprietary precision machining technology and rigorous quality control deliver rapid response, excellent leak tightness, and quiet operation.
• JTEKT’s proprietary design ensures high reliability even in demanding environments affected by temperature and foreign particles, contributing to improved performance in next-generation mobility.

Product Specifications
Burst Pressure	175 MPa or higher
Filling Pressure Range	0.5 to 87.5 MPa
Supply Pressure Range	0.1 to 87.5 MPa
Operating Ambient Temperature	-40 to 85° C
Filling Flow Rate Range	0 to 60 g/s
Supply Flow Rate Range	0 to 1.5 g/s
Tank Connection Thread	M35, 1.5 inch
Certifications Obtained	EU 2021/535 EU 2018/858 UN R134-02
